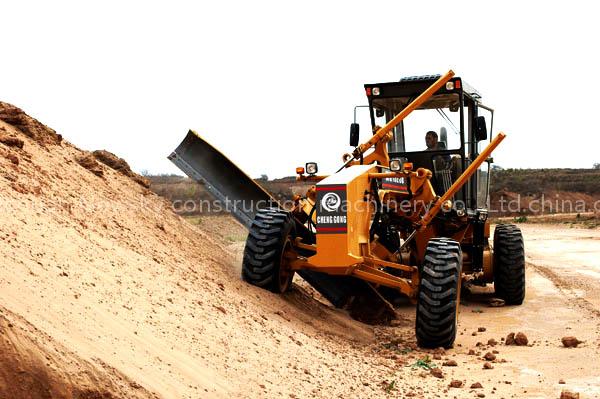

162kw,16.4T motor grader

Features
1. Our MG 1320C standard motor grader is highly efficient and of good quality.
2. Its backward opening engine cover is made of glass-fiber reinforced plastics.
3. The driving axle of this standard motor grader uses an automatic control system for lubrication and oil temperature regulation.
4. It is enhanced by incorporating an imported multi-way valve, braking valve, and liquid filling valve.
5. It has a very strong rear frame, a traction frame and moldboard steering mechanism.
6. This standard motor grader has a spacious ROPS/FOPS cabin.
7. It is equipped with a shock absorbing seat and newly designed panel.
8. Electrical monitoring device
9. This heavy equipment machine also has a non-freon air conditioner.

High Performance Engine
Our MG 1320C standard motor grader is powered by Shanghai C6121 engine. It has a short lift cylinder and provides the motor grader with strong power.

Transmission System with Quick Response
This road grader is equipped with a German 6WG200 ZF electro-hydraulic shift transmission, which works with low energy consumption and little noise. The engine is: 6 speed in forward motion and 3 speed in reverse. It is applicable to different working conditions. Its electro shift and neutral start protection device make the shift easier and smoother. This transmission system greatly increases the machines stability and efficiency, reduces the maintenance cost, and extends its service life to over 10000 hours.

Side Shifted Working Implement
The side shift working implement is locked by an electro-hydraulic controlled taper pin. This gives it a wide moving range and high rigidity. The draw bar is of a solid core structure ("Y" type), which is able to endure heavy loads.

Durable Draw Bar and moldboard
- The "U" type solid framework is of high rigidity.
- The front ripper keeps the motor grader away from any interference and facilitates accurate shoveling.
- The turning circle is fixed on the draw bar by four adjustable metal plates and is driven by a hydraulic motor and turbine reducer.

Comfortable and Safe Driving Conditions
- The control panel of this standard motor grader adopts a short joystick, which is used for convenient operation of the working implements. The joystick is suitably designed and does not block the view of the driver.
- Our patented spring operation device can be rectified or fixed using the footplates.
- The switches and instruments are suitably designed for easy operation and protection of the motor grader driver.

Parameters

Specifications			Unit	Values
Operating Mass	Front Axle		kg	4580
	Rear Axle		kg	11820
	Total Mass		kg	16400
Diesel Engine	Model			C6121
	Rated Power		kW/hp	162/220
	Rated Revolution		r/min	2200
Overall Dimensions	Standard	L × W × H	mm	8980×2600×3470
	With Optional Parts	L ×W × H	mm	10876×2600×3470
Wheel-base	Front Axle to Rear Axle		mm	6290
	Middle Wheel to Rear Wheel		mm	1553
Tread Width			mm	2150
Steering System	Max. Front Wheel Steering Angle		(°)	±45
	Max. Articulated Wheel Steering Angle		(°)	±20
	Min. Turn Radius		mm	8400
Moldboard	Length		mm/ft	3960/13
	Height (Arched Length)		mm	650
	Max. Tilt Angle		(°)	90
	Rotating Angle		(°)	360
	Cutting Angle Adjusting Range		(°)	42~73
	Max. Lift above Ground		mm	410
	Max. Digging Depth under Ground		mm	440
	Max. Shoulder Reach (Left/Right)		mm	1440/2090
Scarifier (Optional)	Scarifying Width		mm	1250
	Max Scarifying Depth		mm	280
	Number of Teeth Shanks		Piece	11
Rear-mounted Ripper (Optional)	Max. Digging Width		mm	2000
	Max. Digging Depth		mm	315
	Number of Shanks		Piece	5
Bulldozer (Optional)	Width		mm	2740
	Height		mm	920
	Max. Dozing Depth		mm	205
