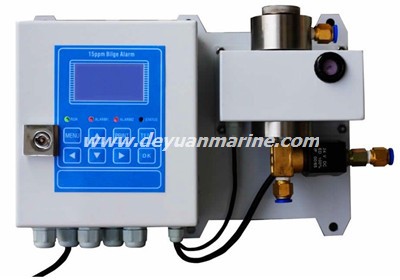

15ppm bilge alarm

15ppm Bilge Water Alarm Main performance indicators

1) Measuring range: 0-30ppm (display range 0-80ppm)

2) Measurement precision: (15ppm alarm) ± 5ppm (meet the IMO standard)

3) Display type : LED digital tube

4) 15ppm bilge water Alarm Alarm indication: 4 red LED

5) 2-way alarm relay

6) Rated capacity of relay contact 250VAC 3A (non-emotional)

7) 15ppm bilge water Alarm Response time ≤ 5 seconds

8) Output signal 4-20mA

9) Environment temperature 0 ℃ - 55 &#8451

10) bilge water Alarm Relative humidity≤ 93%

11) Sample liquid temperature 1 - 55 &#8451

12) Sample liquid pressure 0.1-0.6MPa

13) Sample liquid flow of 0.1-4L / min

14) Protection class IP55

15) Main power supply 220/110VAC 50Hz/60Hz

16) Power Consumption ≤ 20VA

17) Overall dimension 400mm × 300mm × 160mm

18) Meet the standard IMO. Res. MEPC. 107 (49) resolution

More 15ppm bilge water alarm can be offered,pls contact us for more details
