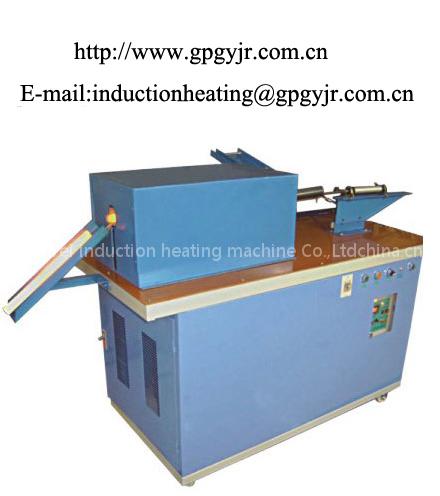

Name: 150kw induction forging machine|induction heating equipment
Brand: MY
SKU: 150kw

1 IGBT module and soft switching inverting technologies are
used in the production of the generator, higher reliability can be
achieved;
2 Small and portable , compared with SCR controlled machine,
only 1/10 working space is needed;
3 High efficiency to save energy, high efficiency and power factor
can be maintained;
4 The generator is adaptable in a large frequency range from
1KHZ to 20KHZ, installation can be done very easily according
to our manual.
5 100% duty cycle , continuous working ability at maximum power ;
6 Constant power or constant voltage control mode ;
7 Display of output power, output frequency, and output voltage.

Main specifications:

Model	MY-15	MY-25	MY-35	MY-45	MY-70	MY-90	MY-110
Input power	15KW	25KW	35KW	45KW	70KW	90KW	110KW
Output voltage	70-520V	70-550V	70-550V	70-550V	70-550V	70-550V	70-550V
Input voltage	380V three phases 50 or 60HZ
frequency	120KHZ designed according to the order
Duty cycle	100%
Weight (KG)	24KG	24KG	34KG	36KG	51KG	57KG	89KG
Size (CM)	27(W)×45(H)×46(L)		27×45×52	35×55×65		40×87×75
others	Front panel with timer can be ordered . The timer function: Heating time and Retaining time : 0.1 ∼ 99.9 second.

150kw induction forging machine|induction heating equipment
