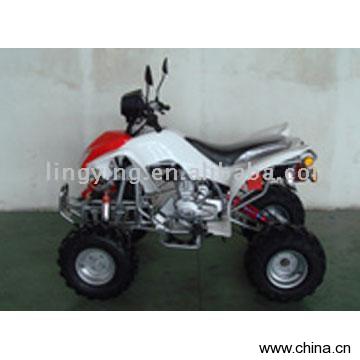

150cc ATV (EEC Approved) is a ATVs product. Key specs — Origin: China (Mainland).
Product Description
Model No.:LYDA-203C Product Origin:China Brand Name:Lingying, Eagle Price Terms:FOB Payment Terms:T/T, L/C at sight Certification:EEC, COC Description:Product Name: 150cc ATV (EEC Approved)Model Number: LYDA-203CPlace of Origin: ChinaFeatures:1) Engine: 150cc, 4-stroke, single cylinder, air cooled 2) Engine displacement (ml): 1473) Bore x stroke (mm): 52 x 49.5 4) Max. power (km/r/min): 8.5/8,000 5) Max.
Torque(r/min): 7/6,000 6) Minimum fuel consumption (g/kW.h): 367 7) Starting mode: electric start8) Transmission mode: chain driven9) Brake type (front/rear): disc/disc 10) Brake distance (m/30km): 7 11) Shift speed type: four with reverse gear 12) Clutch mode: manual clutch 13) Minimum turning radius (mm): 3,000 14) Climbing degree: 27 15) Seat height (mm): 670 16) Minimum ground clearance (mm): 120 17) Top speed (km/h): 55 18) Tire dimension (front/rear): AT18 x 9.5-8/AT18 x 9.5-819) Cover material: PP20) Available colors: red, yellow, blue, green, black21) Product dimensions: 1,610 x 1,050 x 1,160mm22) Dual "A" arm swingPacking:Carton dimensions: 1,480 x 860 x 760mmN.W.: 130kgG.W.: 155kgConveyance:Qty/20' FCL: 22pcs Qty/40' FCL: 64pcs Qty/40' HQ: 66pcs
