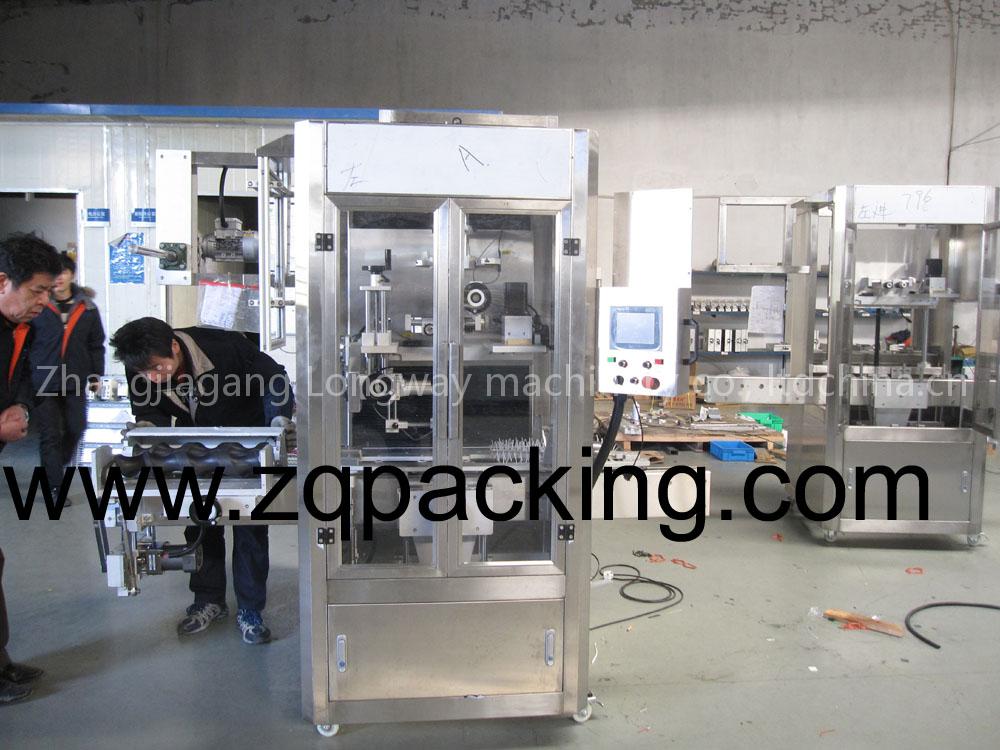

15000bph PVC Label sleeve shrink machine

This machine adopts international advanced technology;cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body is designed This machine’s structure is compact,and suitable for the production line of different direction and different height. The machinery part adopts combination designing of modularization,and makes the machinery height adjustment adopts motor fluctuating;it is convenient to replace the special cutter head designing,make the film-rolling cut more exactly and reliably.

Label inserting head	SXM-100	SXM-150	SXM-250	SXM-350
Capacity	100bph	150bph	250bph	350bph
Power	φ50-φ90mm	φ50-φ90mm	φ50-φ90mm	φ50-φ90mm
Suitable lable material	PVC PET OPP OPS	PVC PET OPP OPS	PVC PET OPP OPS	PVC PET OPP OPS
Lable thickness	0.035-0.10mm	0.035-0.10mm	0.035-0.10mm	0.035-0.10mm
Overall dimension	2400×950×2100	2400×1000×2000	2440×1000×2200	2440×1000×2200
weight	450kg	550kg	600kg	700kg
