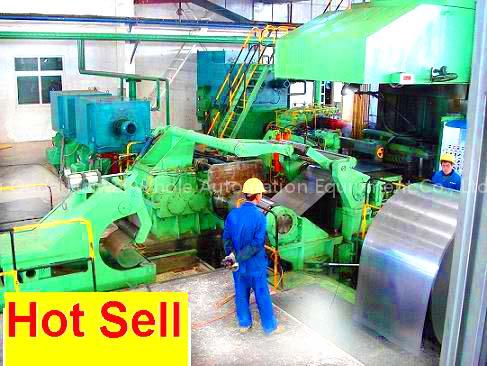

1450mm 6-Hi Reversing Cold Rolling Mill

Incoming: hot rolling strip after pickling treatment

Material: Q195, Q215, Q235, 08A1 , 20, low alloy steel plate and so on Mechanical Properties :

Thickness: 1.8-4mm

Width: 900-1300mm Coil diameter(ID/OD) :¢610/¢2000mm Max coil weight: 26t Finished product:

Thickness: 0.25~1.2mm

Width:900~1300mm Coil diameter(ID/OD):¢610/¢2000mm Max coil weight: 26 t Thickness of Tolerance: 10 μ m under δ0.5mm ± 2% δ above δ0.5mm Drive motor: Main mill: 1250kw×4 Coiling: 1000kw×2 Uncoiler: 510kw×1 Max rolling speed: 1000 m/min Annual yield: 200,000 t/y (calculating as 0.5*1200mm )
