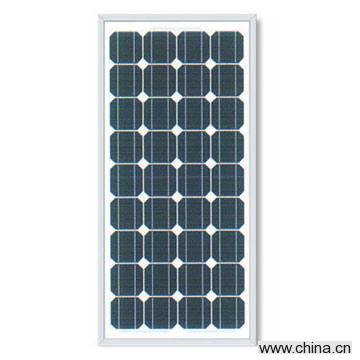

140/150 Watts Solar Panel is a Solar Panels product. Key specs — Origin: China (Mainland).
Product Description
Model No.:ET-M636140/150 Product Origin:China Brand Name:ET Solar Price Terms:FOB, CIF Payment Terms:T/T, L/C Certification: Description:Specifications: PV module with 140W maximum power Cell: monocrystalline silicon solar cells, 156mm squareNo. of cells and connections: 36 seriesApplication: DC 12VsystemMax. system voltage: 1,000VDCSeries fuse rating: 10APower tolerance: ±5%Length of cables: 90mmSurface max. load capacity: 60m/s (200kg/sq.m)Weight: 12kgDimensions: 1,482 x 676 x 35mmElectrical characteristics:Max. power: 140WPOpen circuit voltage (V): 22.15±2Short circuit current (A): 8.63±0.4Max. power voltage (V): 18.16±2Max. power current (A): 7.72Temperature coefficients of lsc (%): 0.06±0.01Temperature coefficients of Voc (%): -0.2±0.02Temperature coefficients of Pm (%): -0.5±0.05Temperature coefficients of lm (%): 0.06±0.01Temperature coefficients of Vm (%): -0.2±0.02Module efficiency (%): ≥13.9FF (%): 73.20%Conditions (STD):Irradiance: 1,000W/m2Temperature: 25°CAbsolute maximum rating:Operating temperature: -40 to +80°CStorage temperature: -40 to +80°CPacking:2pcs/ctn
