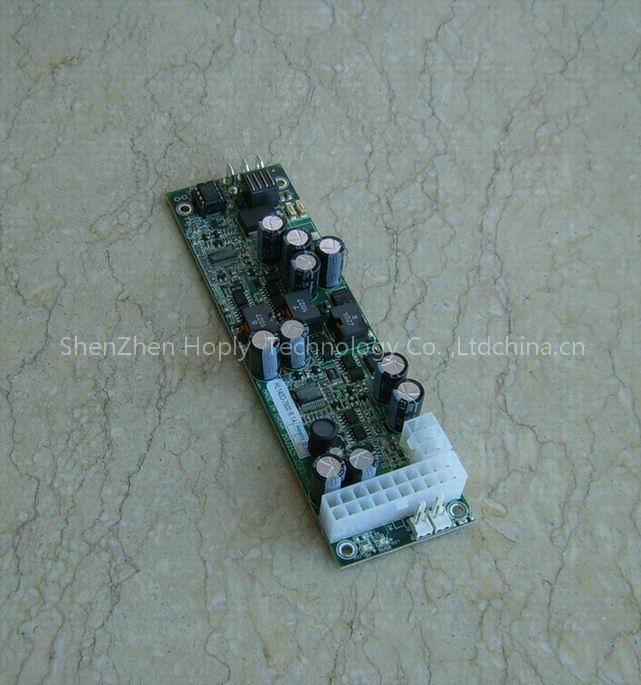

140W DC/DC Power Supply is a Automotives product. Key specs — Brand: hoply; Origin: china.
Product Description
Features: • 6-36VDC input ,170W ATX output • Over voltage and short circuit protection • Over 92% efficiency • Meet ISO7637-2 level IV standard for all 7 waveforms • Intelligent ITPS(ACC) and Amplifier remote control • Input OVP,UVP protection • Input inversion protection (No damage) • RoHS compliant and 2 year warranty Input
Specifications: Input voltage range: 6-36VDC Input current: Input fuse: 15AX2 ISO7637-2 compliance: Yes Input voltage range: 6-36VDC Inrush current (cold start): 25A Input to output: Non-Isolated Input over voltage protection: Yes Input under voltage protection: Yes Input inversion protection: Yes (No damage) Output
Specifications: Voltage +3.3V +5V +12V +5VSB -12V Current 7A 7A 7A 2.0A 0.1 A Ripple(mV) * 50 50 120 50 120 OCP yes yes yes yes yes Regulation 2% 2% 2% 2% 10% OVP yes yes yes N/A N/A SCP yes yes yes yes yes Rise time 10ms 10ms 10ms 10ms 10ms Overshoot 10% 10% 10% 10% 10% Dynamic** 5% 5% 5% 5% 5% General
Specifications: Efficiency: 92% Hold up time: 2ms Meet safety: UL,CE,CCC MTBF(MIL-HDBK-217): >120,000hours Switching frequency: 200K
Weight: 200g Life: >5years Failure rate:
