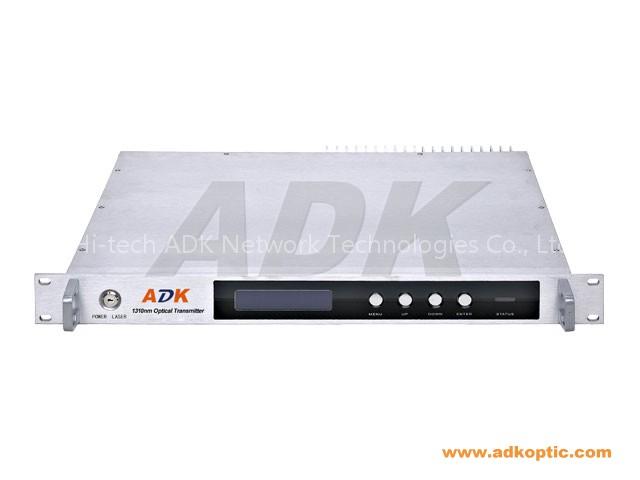

1310nm Optical Transmitter (OT1310-24A)

1310nm optical transmitter with SNMP management, indoor, 1310nm AOI DFB laser, 1 output port, 24mW output optical power, MGC/AGC, imperial F type female port, FC/APC or SC/APC connector, RJ45 and RS232 port, VFD, 19" 1U. 8~26mW is optional. More visit website:3w (dot)adkoptic(dot)com

Features

1. Intensity modulation, high quality DFB

2. Microprocessor automatic control circuit

3. Pre-distortion circuit

4. Low noise, high power and excellent reliability

5. Adopt AGC/MGC circuit

6. Output optical power 4~26Mw

7. VFD, 19" 1U standard framework, RS-485 RS-232 port

Parameter
Output power( mw):4/6/8/10/12/14/16/18/20/22

Optical Circuit loss(dB):7/9/10/11/11.8/12.5/13/13.6/14/14.4

Optical wavelength(nm):1310±20

Laser type:DFB laser

Optical modulation mode:Direct optical strength modulation

Connector type:FC/APC OR SC/APC

Optical reflecting loss(dB):> 45

Frequency range(MHz):47 ~ 750/862

RF input level(dBμV):72 ~ 88

Flatness in band(dB):±0.75

RF input impedance(Ω):75

Input reflecting loss(dB): ≥16

C/N(dB):≥51

C/CTB(dB):≥65

C/CSO(dB):≥60

AGC control range(dB):±8

MGC control range(dB):±8

Supply voltage(V):AC 160V ~ 250V (50 Hz)

Consumption(W): 30

Working temperature:-10 ~ +45

Storage temperature:-30 ~ +70

Relative humidity:Max 95% no condensation

Dimension(mm):483W*340L*44H

Application

Digital CATV&HFC network system

Optical fiber communication system

FTTx (FTTH, FTTP, FTTB, FTTC)

Triple-play(GEPON)
