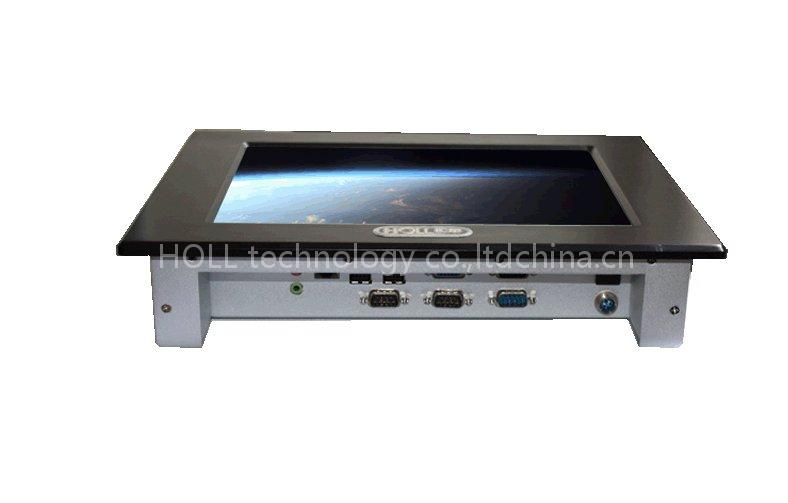

12.1 inches lcd Panel PC IEC-612P

Fanless Panel PC with Intel Atom N270 Processor, 12.1" TFT LCD Panel support 800x600 pixels,3*RS232,1*RS232/422/485,1*VGA,1*LPT, 4*USB,1*GLAN,1*Audio, Resistive Touchscreen, Wifi Optional

12.1" LCD Panel PC with Intel Atom N270 Processor
Features
12.1" TFT LCD Panel support 800x600 pixels
Intel Atom N270 1.6G,L2 512K CPU
200 cd/m2 brightness
Material:Aluminium magnesium Alloy(Better than Aluminium)
Resistive Touchscreen
Wifi Optional
NEMA4/IP65 compliant front panel
Meet standard VESA hole , support desktop stand / wall mount / swing arm mounting

Specifications
System
Motherboard IEC-815N2D Motherboard
CPU Intel Atom N270 1.6G L2 512K
RAM (Memory) 1G DDR2
Network 1 x Intel 82574L Gigabit Lan
HDD (hard disk ) 2.5" HDD SATA160G
Display Intel GMA950, Up to 224M display
I/O Connector 3*RS232,1*RS232/422/485,1*VGA,1*LPT, 4*USB,1*GLAN,1*Audio
Expansion Wifi (Optional)
Construction Aluminum magnesium Alloy
Color Black
Installation Install on desk,Hanging on the wall or VESA cantilever install
Power connector 3 Pin connector
Power Supply DC12V input
LCD Panel
Display type 12.1" TFT LCD
Resolution 1024x768
Luminance 200 cd/m2
Contrast Ratio 300:1
Touchscreen
Type Resistive Touchscreen
Controller Interface Internal USB ( RS-232 interface option)
Light Transmission 81% or more
Operating Force ≤250g
Life Expectancy 10 Millions
Environmental Specifications
Oprerating Tempreture 0 °C to 60 °C
Storage Humidity 5% to 40°C , on-condensing
Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
Shock 10G peak acceleration (11 msec. duration)
IP Leve (Front Panel) IP65
Safty FCC/VDE(Level A)
MBTF >50,000 hrs
Packing info
Dimensions(WxHxD) 340x268x69.7mm
Packing Dimension 406x344x140 mm
NET weight 4.5 KG
Exporting packing 12v Power adapter x1, User manual x1,Warranty card x1, Packing list x1, Driver CD x1, Screws x1 bag, Touch pen x1, Clipx4
Ordering informations
IEC-612P IEC-612P Chassis,12.1" TFT LCD, 12.1" Touchscreen, IEC-815N2D Board, DDR2 1G Ram, 2.5" 160G SATA HDD, power adapter, 4x COM, 1xVGA, 1x LPT, 4xUSB, 1xGLAN, 1xAudio
