Listing ID#10220804
ModelDA-15A
CategoryAir Conditioning Systems

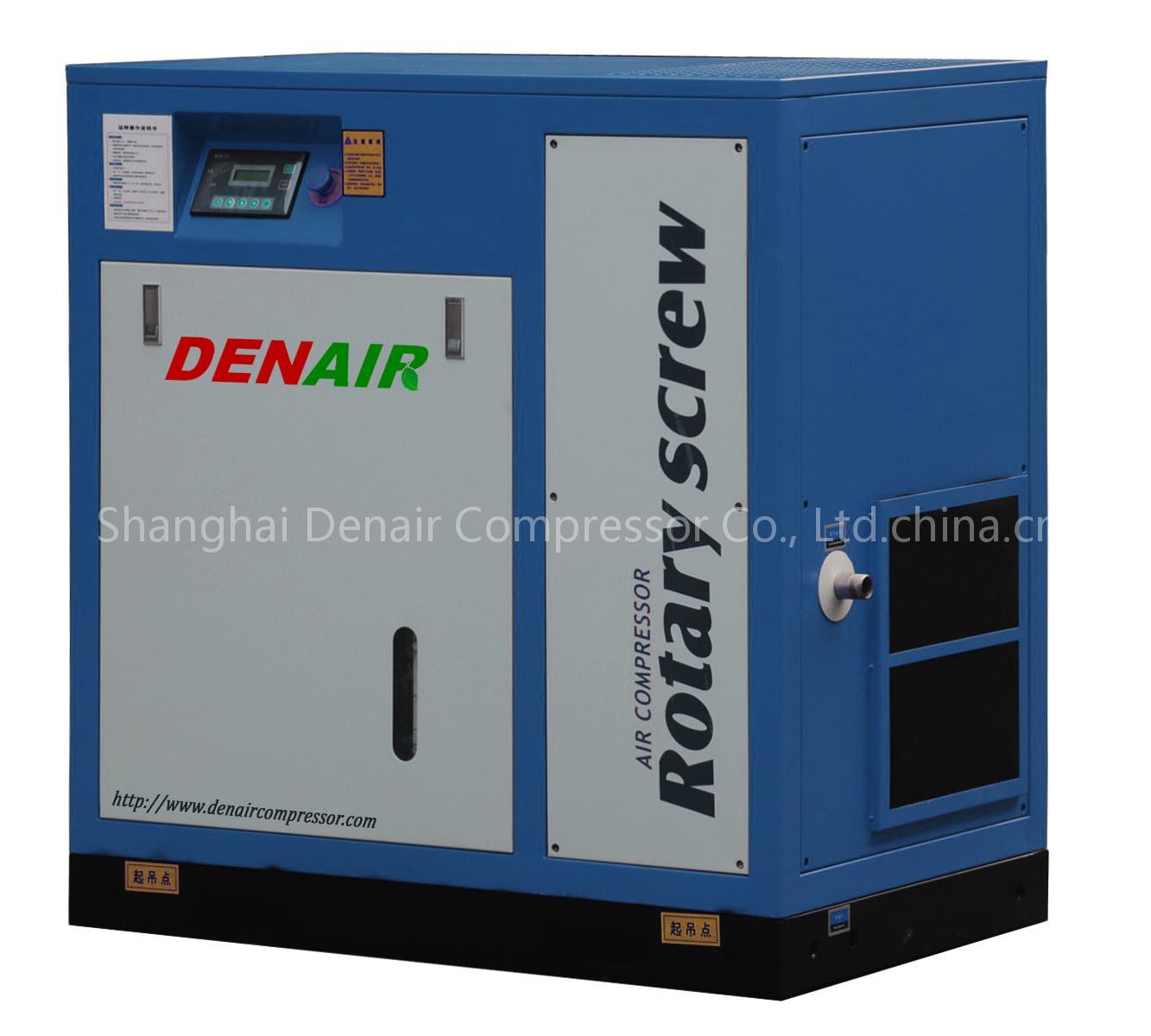

11KW Denair screw air compressor DA-15A
Specifications
- Brand
- Denair
- Origin
- China
Quick answer
11KW Denair screw air compressor DA-15A is a Air Conditioning Systems product. Key specs — Brand: Denair; Origin: China.
Product Description
| Model | 　 | DA-15A | ||||
| Capacity | m3/min | 1.7 | 1.6 | 1.4 | 1.2 | |
| Working pressure | Mpa | 0.7 | 0.8 | 1 | 1.3 | |
| Motor power | KW | 11 | ||||
| HP | 15 | |||||
| Noise | dB(A) | 72±5, measured according to the international GB/T4980-2003 standard | ||||
| Outlet Diameter | mm | 1” | ||||
| Cooling method | 　 | Air cooling | ||||
| Driven method | 　 | Belt driven | ||||
| Oil content of discharged air | ppm | Less than 3 ppm | ||||
| Motor | Pressure | Mpa | 0.1033 | |||
| Rotation speed | rpm | 2935 | ||||
| Starting method | 　 | Y-Δ start | ||||
| Protection class | 　 | IP54 | ||||
| Insulation class | 　 | F class | ||||
| Voltage | V/Ph/Hz | 380V/3Ph/50Hz as standard, also can be changed according to customer’s requirements. | ||||
| Dimension | L | 1150 | ||||
| (mm) | W | 700 | ||||
| 　 | H | 1180 | ||||
| Weight | Kg | 475 | ||||
