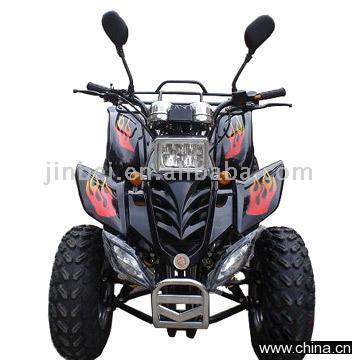

110cc ATV is a ATVs product. Key specs — Origin: China (Mainland).
Product Description
Model No.:JBA110-05 Product Origin:China Brand Name: Price Terms:CIF, FOB Shanghai Payment Terms:T/T, L/C Certification:CE Description:Product Name: 110cc ATVModel Number: JBA110-05Place of Origin: ChinaFeatures:1) Transmission: shaft drive, reverse 2) Shock absorber: three shock absorbers, double arms 3) Min. ground clearance: 100mm 4) Min. turning radius: 2,400mm 5) Dry weight: 123kg 6) Engine: 4-stroke, single cylinder, air cooling 7) Displacement: 110cc 8) Front/rear brake: drum 9) Starting system: electric 10) Fuel tank capacity: 7L 11) Front tires: 19 x 7-8 /2.9psi 12) Rear tires: 18 x 9.50-8 /2.9psi 13) Compression ratio: 9.6:1 14) Bore x stroke: 52.4 x 49.5mm 15) Rider capacity: 1 person 16) Max. speed (road): 60km/h 17) Max. loading capacity: 95kg (209lbs)18) Engine oil capacity: 0.95L 19) Gear oil capacity: 0.12L 20) Overall dimensions: 1,560 x 900 x 1,050mm 21) Front suspension: double arms 22) Real suspension: swing arm 23) Battery: 12V/7A 24) Wheelbase: 1,040mm 25) Special travel bag: yes/no Packing:Carton dimensions: 1,380 x 890 x 720mm Conveyance:Qty/20' FCL: 27 setsQty/40' HQ: 63 sets
