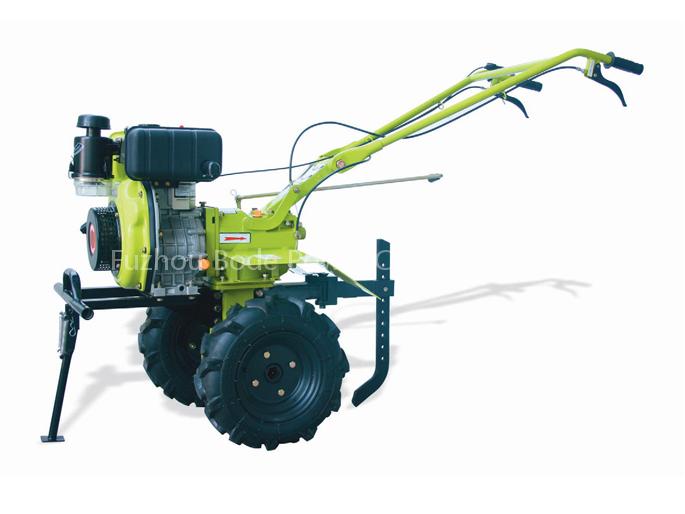

10hp diesel power tiller

We are a professional factory of , gasoline tiller, wood chipper, power sprayer, snow thrower and crusher, could provide tiller, snow thrower, crusher as your request. More products wanted ,please contact us right now!

Tiller Model BT1100A

Body Size (mm) 1800*1350*850

Tilling Width(mm) 800-1300

Tilling Depth(mm) 150-300

Gear Shifting -1,0,1

Type of Tire 4.0-8/5.0-12

Engine Engine Model BD186FA8(Diesel Engine)

Bore*stroke(mm) 86*72

Displacement(ml) 406

Max. Output hp( kw )/rpm 10(6.7)/3600

Combustion System Direction injection

Fuel tank capacity(L) 5.5

Lube capacity(L) 1.65

Engine type Single-cylinder, Vertical 4-stroke,forced air-cooled engine

Starting model Recoil/Electric

Packing Dimension (mm) 970*580*760

N.W/ G.W kg 165/178 Quantity (set) 72/20FT ;144/40FT

Did not find what you are looking for? Related Products: 6HP diesel tiller, 9HP diesel tiller Diesel Tiller Tools: Hoe for deep tilling Hoe for cross Tilling for more tools, contact us right now!
