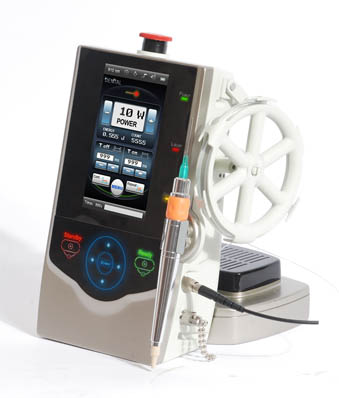

10W Mini veterinary Surgery Laser

10W Cheese portabl on dental applications, but also can meet your needs on VET surgery applications which can use the output power not higher than 10W. With our all kinds of accessories, you can easily get solutions for your surgical and dental applications.

1. Introduction

16 presets treatment options

There are 16 programs for common clinic use on the software, doctors do not need to set or memorize any parameters for the operation.

Compact, hand-held system

With weight of only 1.8KG, dimension of 200mm*120mm*65mm, cheese™ Can be easier held by hand.

User-friendly interface

It is easy to set every parameter on interface.

Battery-operated, optional for your choice

You can still go on use for one hour if without any power supply by the battery-operated design.

Full accessories

There are varies handpiece for soft tissue cutting and bleaching, also fibers from 200um to 600um for different clinic request.

Clinical instruction available

There is a full clinic instruction together with our dental laser system, to teach you how to set parameters and the notices for different applications.

10W can meet your different clinicals requirements.

Easy fiber helder.

Color touch screen.

2. Clinical application

Veterinary

PLDD

Dermatology / aesthetic

Dentistry

ENT

Surgical / gynaecology

3. Specifications

CHEESETM 10W

Laser Type GaAlAs Diode Laser

Model DEN10B

Wavelength 980nm

Maximum Power 10W (with min. 200um fiber)

Operation Mode Continue or Pulse

Pulse Duration 1ms ~ 1s

Repetition Rate 0.5Hz~0.5kHz

Transmission System Fibers Of 200um, 400um And 600um With SMA905 Connector

Pilot Beam Red Diode Laser Of 635nm, Power
