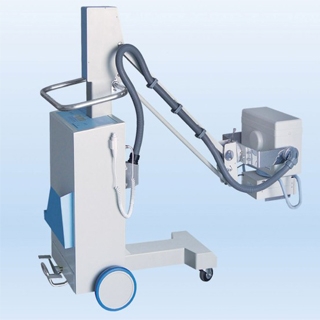

100mA mobile x-ray equipment(PLX101C)

Usage of mobile x ray machine

The x ray machine is combined with high-frequency X-ray photography diagnostic equipment, which is used in radiology, orthopedics, wards, emergency rooms, operating rooms, and ICU, etc. It is mobile diagnostic equipment which can make radiography on human body, such as head, limbs, chest and spine.

Medical x ray machine PLX101C Specification

Power Output 5.0KW Frequency 40KHz Power Supply 220V± 10% 50Hz inner-resistance≤ 1.0Ω Operation Method Wire/Wireless control Current supply 100mA microfoucs 1.5mm

Features of mobile x ray machine

1. The kV closed-loop control is adopted for high frequency and high voltage generator. The digital closed-loop control technology by mAs and real-time control by the microprocessor have guaranteed accuracy and repetition of dosage.

2. Two-button adjustment by kV and mAs, display by LCD and memory by parameters after power failure.

3. The users can depend on themselves to revise the parameters of the 50 preset parameters human anatomy program.

4. The x ray machine is featured with protection for shortage of high voltage, over-flowing of tube current and output over-loading as well as indication for failure.

5. The structural design of human engineering is simple and convenient for operation and overhaul.

Warranty:1 year

Net weight: 150kg
