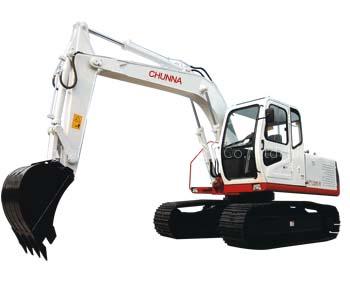

0.4m3 crawler hydraulic excavator

Production Information

1. The whole machine is streamlined designed with fashionable and beautiful appearance, high cost performance.

2. The cab is designed ergonomics with wide vision, operating comfortably, reducing noise .Allocated with air-conditioner.

3. Advanced monitoring system, automatic fault warning system.

4. The rationale Yuchai YC4B115Z Engine and powerful driving system, four-wheel driving. Highlight energy saving, environmental and working efficiency.

5. Introduce the Germany Rexroth Hydraulic System, variable plunger pump, double pump confluence, compound operation smoothly.

6. Hydraulic rubber tubes are the famous domestic or abroad brand, the tube can bear high pressure, has a superior pulsating performance.

7. Famous domestic hydraulic cylinder boom with a good buffering function.

8. The structure adopted the domestic 16Mn high-quality steel, using advanced 3d computer graphics and ultrasonic flaw detect the quality of welding seam, to ensure driving and construction safety.

Specifications

Weight(Kg) : 11100

Bucket width(mm): 970

Bucket capacity(m3):0.40

Power/Speed(KW/rpm): 64/2400

Length(mm):6670

Width(mm):2385

Height(mm):3100

Rear part rotary radius(mm):2100

Min. clearance(mm):260

Max. digging depth(mm):3900

Max. digging radius(mm):7090

Max. digging height(mm):7090

Travel speed(Km/h):0-20

Swing speed (rpm):0-11

Climb capacity:25

Max. traction force(Kn):70

System rated working pressure(Mpa):25

If you want to purchase our products, please feel free to contact us.
