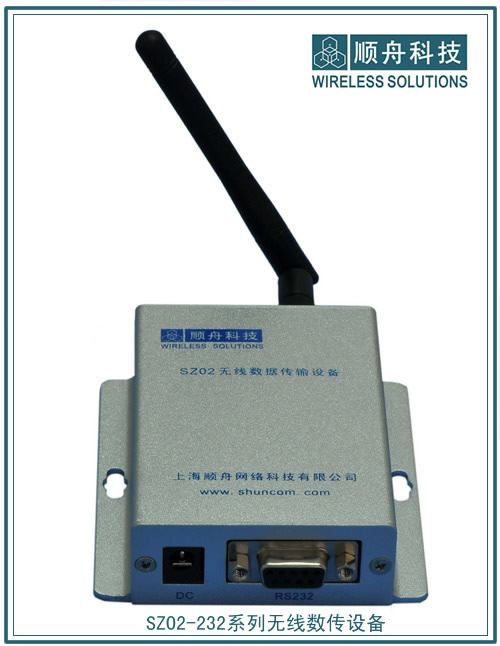

zigbee data-transmission equipment - SZ02-RS232-2K Specificaton & Trade Terms
Model | SZ02-RS232-2K |
---|
Place Of Origin | Shanghai,China |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|
SZ02-RS232-2K zigbee wireless communication device is zigbee-advanced module which is integrated with zigbee 2.4G RF modem and MCU. It is designed to operate within the ZigBee protocol and support the unique needs of low-cost, low-power wireless sensor networks.
Wireless communication
1. Distance; 2000m at sight
2. Network type: star, line or mesh
3. Channel detection : CSMA-CA and GTS CSMA-CA
4. Network capacity : 65535
5. Node type: coordinator, router or end device (can be set )
Data interface:
1. Maximum data packet: 100 bytes
2. Data interface: RS232
3. Serial rate: 1,200 ~ 115,200 bps (optional)
4. Serial parity : None, Even, Odd
5. Data bit: 7 or 8
6. Stop bit: 1
Transceiver:
1. Modulation mode: DSSS direct sequence spread spectrum
2. Frequency range: 2.405GHz~ 2.480GHz
3. Wireless channel: 16
4. Receiver sensitivity: -105dbm
5. Transmit power output: 25dBm
6. Antenna: The outer SMA antenna
7. Size: 90mm*81mm*25mm (length*width*height)
Power:
1. Input voltage: 5V-24V broad voltage
2. Average current: 70mA
3. Maximum receiving current: 250mA
4. Standby current: 10mA
5. Power saving mode: 110uA
6. Sleep pattern: 56uA
Working environment:
1. Working temperature: -40C ~ 85C
2. Storage temperature: -55C ~ 125C
