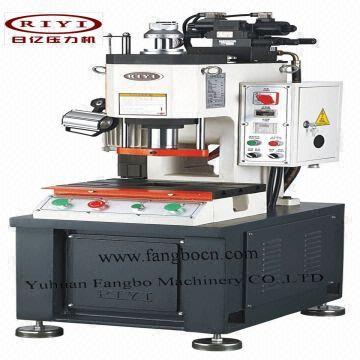

universal hydraulic press - FBY-C10

universal hydraulic press - FBY-C10
:
Yuhuan Fangbo Machinery CO.,LTD
: 2011-12-03 00:05:32
:
Medium and Small Hydropress, Single Column Hydraul

Inquiry Supplier / Manufacturer
Description Of universal hydraulic press - FBY-C10

universal hydraulic press - FBY-C10 Specificaton & Trade Terms

ModelFBY-C10
Place Of OriginChina
Price TermEX-Work
Payment TermT/T
Product feature
1.The C-body design, whole body cast, high rigid.
2. All hydraulic systems, greater pressure, stable and reliable performance.
3. Rod mechanical limit, under pressure stroke adjustable , positioning accuracy 0.02mm.
4. Downward movement with the fast and Feeding speed,the fast forward improve work efficiency;feeding speeds can be adjusted to protect the mold and improve product quality.
5. Safety designed, using both hands to operate, with emergency stop button and jog up and down function.
6.Key and Foot Switch two cycle start modes.
7. Under cylinder can be configured to facilitate part to taken out(Optional).
8. Infrared protection can be configured (Optional).

Technical Parameters
Theoretical output pressure 100KN(10t)
Rated oil pressure 13Mpa
Max stroke 200mm
Max Opening Height 230mm
Throat Depth 200mm
Fast-forward speed 110mm/s
Feeding speed 10~70mm/s
Return speed 150mm/s
The size of the working table 500 X 400mm
The height of the working table 780mm
Size of the mold mounting hole Φ32mm
Power of motor 3.7kw
Power(3ΦAC,50Hz)380V
Weight 970kg

what's more,the hydraulic machine can be designed for all kinds of customers' special request
