Description Of spay booth HC910 - HC910

spay booth HC910 - HC910 Specificaton & Trade Terms

ModelHC910
Place Of OriginGuangzhou,China
Price TermEX-Work
Payment TermT/T

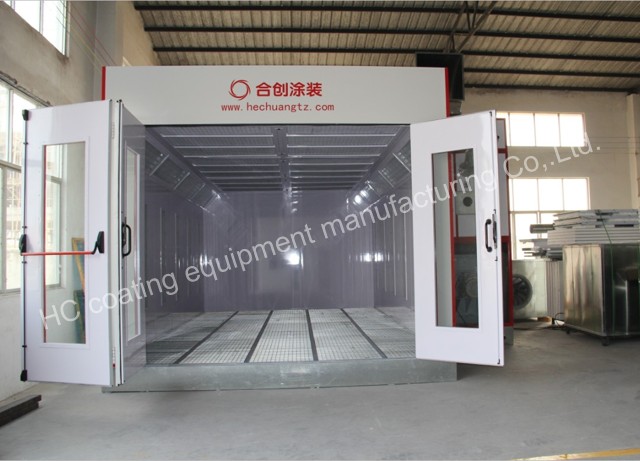

Outside size: 7110 x 5570 x 3810 mm (L x W x H) Inside size:(mm) 7000 x 4000 x 2800 mm (L x W x H)
Foundation and floor Foundation Adopt galvanized bending forming, more durable and strong. Full grids, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing.
Surface area of foundation 27 M²(full galvanized grids)
Metal basement 350mm height, the ventilation effect is better than traditional spray booth.
Drive-in ramps 3 big drive-in ramps, each size: 2000x1030mm, diamond plate structure.
Wall and door Wallboard and roof panel High quality double construction fireproof insulation rock wool panel, thickness: 50mm
3-folded entrance door with safety glass window 1set,size: 3200x2700 mm(B x H),tempering glass observation window , size is bigger than traditional spray booth.
Operator’s door with safety glass window 800x2000mm(B x H)the top of service door installs door closer to close the door automatically
Spray gun hanging system Install hanging arm in cabin, convenient for operators to hang spray gun, etc.

Lighting Ceiling lighting 8units,each 4 x 36 W,total 1152w , adopt Germany OSRAM Lamp, grade of lighting box’s dustproof and waterproof reach IP54 grade.
Side lighting 8units,each 2 x 36 W,total 576w, adopt Germany OSRAM Lamp, grade of lighting box’s dustproof and waterproof reach to IP54 grade.
Brightness ≥1000 LUX
Filtration system
Pre-filters EU3 grade pocket filter, filtration effect is much better
Ceiling filter EU5 grade high efficient filter
Bottom filter and exhaust filter Fibreglass paint-stop filter
Ventilation system Inlet fan (Direct drive motor) Adopt big impeller turbo fan,Germany SIEMENS Brand motor, 7.5KW,6-pole motor, 970RMP, 380V,50HZ
Outlet fan(Direct drive motor) Adopt big impeller turbo fan,Germany SIEMENS Brand motor, 7.5KW,6-pole motor, 970RMP, 380V,50HZ
Painting and baking exchange system Solenoid valve+ pressure adjustment control cylinder driven damper exchange
Total fan capacity 25.000m³/h
Air flow speed in cabin Inverter adjustment, 023m/s in empty both, 0.25-0.35m/s in loaded booth
Heating system Heating exchanger material Adopt high efficient heat-resistant stainless steel as cycling heat exchanger
Heating exchanger capacity 200KW(260.000Kcal/H)
Burner model Adopt Italy REILLO two ranges diesel burner RG5D(260.000kcal/H),quicker heating and much better effect, more rest assure for quality
Heating time 3-5 minutes( from 20°C to 60 °C) under baking status, the max baking temperature is 80°C
Control system Control system Inverter control system
PLC controller Yes, PLC control, more reliable, lower breakdown rate
Human-computer interface touching screen control system Yes, touching screen control, easier to operate
Inverter control Inverter control , more energy-saving, more economic
Function Painting, warm painting, baking, leveling, emergency stop switch, inverter, pressure adjust balance, alarm indication, failure indication, over-temperature alarm indication, baking delay stop protection
