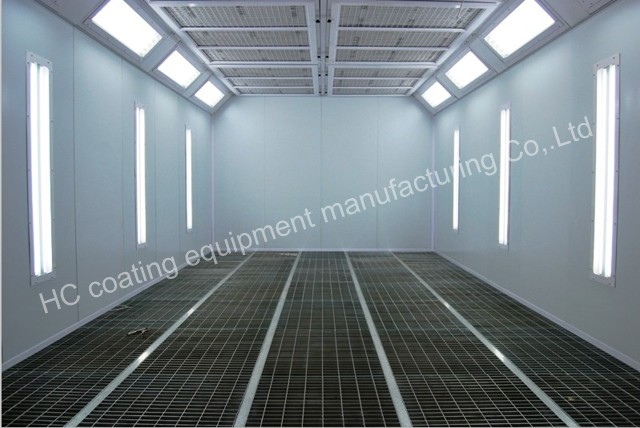

Description Of spay booth HC650 - HC650

spay booth HC650 - HC650 Specificaton & Trade Terms

ModelHC650
Place Of OriginGuangzhou,China
Price TermEX-Work
Payment TermT/T
Outside Size:(mm) 7110 x 5570 x 3810 mm (L x W x H)  Inside  Size:(mm) 7000 x 4000 x 2800 mm (L x W x H)
Basement Basement Full metal foundation, full grids, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing.
Surface area of foundation 27 M² (full grids)
Metal basement 350mm height, the ventilation effect is better than traditional spray booth.
Drive-in Ramps 3Units, each size: 2000x1030mm, diamond plate construction
Foundation and Floor  Wallboard and Roof Panel Adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm
3-Folded Entrance Door With Safety Glass Window 1 set, size: 3200x2700 mm(B x H), size is bigger than traditional spray booth
-Operator’s Door With Safety Glass Window Big opening:800x2000mm (B x H),hand-made, tempering glass observation window
Light System Ceiling Lighting 8Units, each4×36w, total 1152W , the grade of lighting box’s dustproof and waterproof reach IP54 grade.
Side Lighting 8Units, each2×36W, total 576W, grade of lighting box’s dustproof and waterproof reach IP54 grade.
Brightness ≥1000 LUX
Filtration System Pre-filters EU3 grade pocket filter system, filtration effect is much better
Ceiling Filters EU5 grade high efficient filter
Bottom filter & exhaust filter Fibreglass paint-stop filter
Ventilation System  Inlet fan (Direct Drive Motor) Adopt big impeller turbo fan 7.5KW ,380V,50HZ,CE
Outlet fan (Direct Drive Motor) Adopt big impeller turbo fan 7.5KW ,380V,50HZ,CE
Painting and baking exchange system Solenoid valve+ pressure adjustment control cylinder driven damper exchange
Fan Capacity  25.000m³/h
Air Flow Speed  0.23 m/s in empty booth, 0.25-0.35m/s in loaded booth
Heating System Heating Exchanger Adopt high efficient heat-resistant stainless steel as cycling heat exchanger
Heating Exchange Capacity 200KW(260.000Kcal/H)
Burner Model Adopt Italy RIELLO diesel burner RG5S, (260.000kal/H), quicker heating and much better effect, more rest assure for quality
Heating time  3-5 minutes( from 20°C to 60°C) under baking status, the max baking temperature is 80°C
Control board Control system Standard Y/Δ step-down start control system
PLC controller Yes, PLC control, more reliable and lower breakdown rate
Pressure testing The pressure gauge indicate the pressure inside cabin
Function Painting, warm painting, baking, emergency stop switch, alarm indication, failure indication, over-temperature alarm indication, baking delay stop protection
