Description Of silicon rubber sheet,synthetic rubber sheet - 001

silicon rubber sheet,synthetic rubber sheet - 001 Specificaton & Trade Terms

Model001
Place Of OriginChina
Packagingcarton
BrandDeLi
Price TermFOB
Payment TermT/T
Supply Ability1000
Minimum Order1
Loading Portstianjinxingang
Delivery Time7days

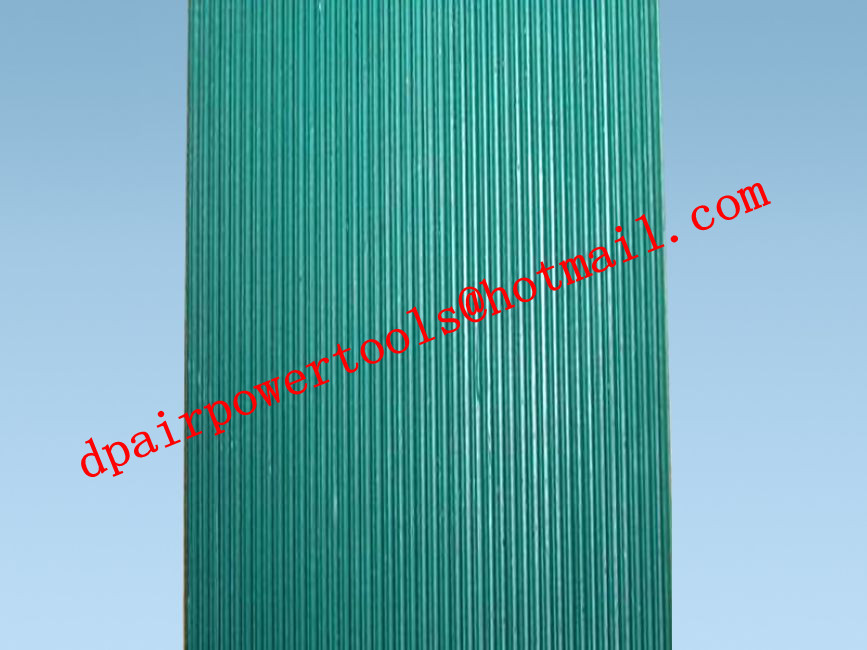

silicon rubber sheet,synthetic rubber sheet
There are many kinds of rubber sheet available,SBR rubber sheet,Natural rubber sheet,silicone rubber sheet,Viton rubber sheet,EPDM rubber sheet,Nitrile/NBR rubber sheet,Neoprene/CR rubber sheet.
According to the surface,there are Stud rubber sheet,ribber rubber sheet,Diamond rubber sheet,etc.
For your special requests,there could be cloth insertion sheet,one ply,two plies available.
With the widest product range in the market, Standard A can deliver rubber sheeting and rubber matting, quickly and reliably for all areas of use.Common applications include sealing, bearing parts and protection.Our extensive range of rubber matting products is suitable for most uses and is extraordinarily tough in all applications like public places as rooms, shops, restaurants, stairways, entrances, airports, buses etc.
Specification
Thickness: 1mm-50mmWidth: 0.5m-2mLength:≥1m
Technical Data
Type Specific Gravity(g/cc) Hardness(Shore A) Tensile Strength(Mpa) Elongation at break % Color

NR/SBR 1.45 50±5 5 300 black
1.5 60±5 4 250 black
1.6 65±5 3 250 black
1.7 70±5 2-2.5 200 black
NR/SBR 1 Ply 1.6 65±5 3 250 black
NR/SBR 2 Ply 1.6 65±5 3 250 black
redSBR Sheeting 1.7 80±5 3 200 red
greySBT Sheeting 1.7 80±5 3 200 grey
Synthetic
Nitrile(NBR) Rubber
With Excellent resistance to oils, solvents and fuels. Resistant to a broader range of aromatic hydrocarbons than neoprene. Nitrile may be blended with SBR rubber to achieve an economically priced sheet or moderately oil resistant applications. Temperature range: -30°C to +120°C, with the possibility of reaching -40°C.
Technical Data
Commercial Nitrile rubber
Type Specific Gravity (g/cc) Hardness (Shore A) Tensile Strength (Mpa) Elongation at break % Color Working temperature (°C)

NBR 1.6 70±5 3 200 black -20/90
1.55 65±5 4 250 black -20/90
1.5 60±5 5 250 black -20/90
1.4 70±5 7 300 black -20/90
High quality Nitrile rubber
Type Specific Gravity (g/cc) Hardness (Shore A) Tensile Strength (Mpa) Elongation at break % Color Working temperature(°C)

NBR 1.16 50±5 7.5 450 black -30/100
1.19 60±5 8.5 400 black -30/100
1.2 65±5 8.5 400 black -30/100
1.21 70±5 12.5 250 black -30/100
1.28 80±5 12.5 150 black -30/100
Neoprene(CR) Rubber
Excellent mechanical and abrasion properties even without reinforcing fillers;Good resistance to heat, ozone and weathering.Resistance to chemicals; resistant to inorganic chemical products , except oxidising acids and halogens.Moderate resistance to aliphatic hydrocarbons
Technical Data
Type Specific Gravity (g/cc) Hardness (Shore A) Tensile Strength (Mpa) Elongation at break % Color Working temperature (° C)

Commercial CR 1.6 70±5 3 200 black
1.5 70±5 5 250 black
1.4 50±5 5 300 black
High quality CR 1.35 60±5 13 300 black -40/100
EPDM Rubber
Excellent resistance to ozone, sunlight and oxygen.Excellent resistance to acid, alkali and ketones.Excellent inherent high and low temperature ranges. Typically -45°C to +120°C for standard compounds.
Technical Data
Type Specific Gravity (g/cc) Hardness (Shore A) Tensile Strength (Mpa) Elongation at break % Color Ozone Resistant30°C x 72H x 20%

EPDM 1.6 70±5 3 200 black 50pphm
1.5 70±5 5 300 black 50pphm
1.35 60±5 5 300 black 200pphm
1.3 50±5 5 300 black 50pphm

Butyl Rubber
Excellent resistance to ozone, oxidation and sunlight.Has very low resilience which makes it ideal for vibration damping and shock absorption applications.Resistance to chemicals; resistant to most inorganic products. Highly resistant to mineral acids, alkalines and aqueous acids.
Technical Data
Type Specific Gravity (g/cc) Hardness (Shore A) Tensile Strength (Mpa) Elongation at break % Color Working temperature(° C)

Butyl 1.5 70±5 5 300 black -30/130
1.4 60±5 5 300 black -30/130
1.3 50±5 5 300 black -30/130


silicon rubber sheet,synthetic rubber sheet
