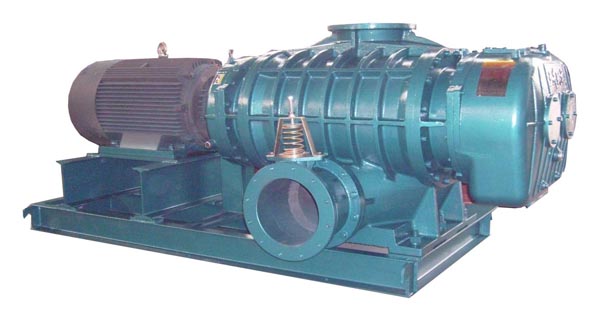

rotary lobe blower - twin lobe

rotary lobe blower - twin lobe
:
Greentech International (Zhangqiu) Co., Ltd
: 2012-12-03 18:25:41
:
roots blower, blower, rotary blower, vacuum pump

Inquiry Supplier / Manufacturer
Description Of rotary lobe blower - twin lobe

rotary lobe blower - twin lobe Specificaton & Trade Terms

Modeltwin lobe
Place Of OriginChina
Packagingwooden case
Brandgreentech
Gurantee18month
CertificationsISO9001
Price TermEX-Work
Payment TermT/T
Supply Ability1000sets
Minimum Order1set
Loading PortsQingdao
Delivery Time30days
Roots Blower

Bore: 50~500mm

Flow capacity: 0.5~420m3/min

Pressure rise: 9.8kPa~98.8kPa

Vacuum: -49kPa



Roots blower, sometimes called a Positive Displacement, or PD blower, is a machine which "pushes" a relatively constant volume of the gas handled at the inlet through to the discharge. It applies to conditions requiring high vacuum or high pressure especially in the waste water treatment plant.

The main purpose of the blower is to provide constant flow of gas at different pressures. The blower consists of a cast iron casing in which two rotors with conjugate shapes rotate and are synchornised by a set of timing gears. During rotation, there is no contact between the lobes or between the lobes and the casing.
