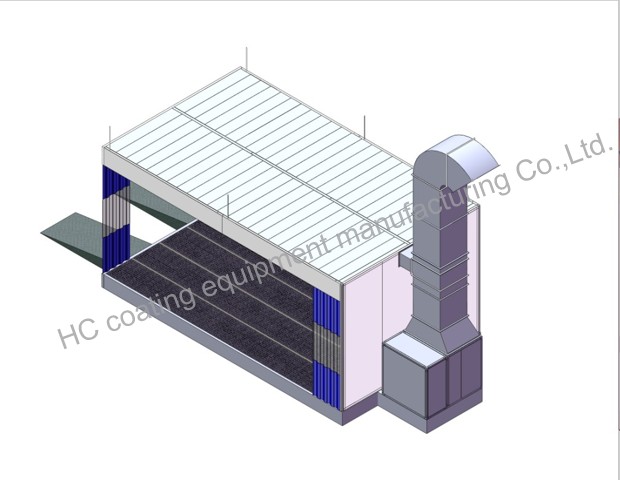

Description Of prepatation station HC-A3 - HC-A3

prepatation station HC-A3 - HC-A3 Specificaton & Trade Terms

ModelHC-A3
Place Of OriginGuangzhou,China
Price TermEX-Work
Payment TermT/T
Outside size: 7870 x 3570 x 3610 mm (L x W x H) Inside size: 6300 x 3500 x 2800 mm (L x W x H)
Foundation and floor Foundation Full metal foundation, full grids, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing.
Surface area of foundation 20 M²(full galvanized grids)
Metal basement 350mm height, the ventilation effect is better than traditional spray booth
Drive-in ramps 2 units drive-in ramps, each size: 2000X500mm,diamond plate structure
Wall and door Wallboard and roof panel Rear wall of cabin adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm, have function of fireproof and keeping warm. Roof panels adopt galvanized steel plate bending forming
PVC curtain There are PVC soft curtains install on front and two sides of cabin
Lighting Ceiling lighting 6Units, each4 x 36 W,total 864w,grade of lighting box’s dustproof and waterproof reach IP54 grade.
Brightness ≥700 LUX
Filtration system
Ceiling Filters EU5 grade high efficient filter
Bottom filter & exhaust filter Fibreglass paint-stop filter
Ventilation system Outlet fan (Direct Drive Motor) Adopt big impeller turbo fan 7.5KW,380V,50HZ
Fan gate adjustment Use electric damper driven to adjust the return air of damper
Fan Capacity  25.000m³/h
Control Board Control system Standard Y/Δstep-down start control system
Function Fan start, electric damper adjust, emergency stop switch, failure indication
