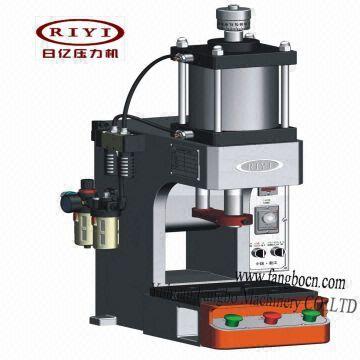

Description Of pneumatic presses - FBQ-A200

pneumatic presses - FBQ-A200 Specificaton & Trade Terms

ModelFBQ-A200
Place Of OriginChina
Price TermEX-Work
Payment TermT/T
Product feature:
1. Compressed air as power source, easy to operate.
2.No hydraulic system noise, can reduce electricity consumption and thus reduce production costs.
3.Adjustable cylinder stroke, special trip can be customized.
4. Output force adjustment easy, as long as regulate the input air pressure, should be able to achieve the required pressure.
5. Safety designed, using both hands to operate, with emergency stop and jog up and down function.
6. Multi-use, for pressing, punching, riveting, assembly, cutting and so on.

Technical parameters:
Max working height 275mm
Cylinder stroke 120mm
Table sizw 200x200mm
Using pressure 0.4-0.7Mpa
Mold mounting hole φ25mm
Power AC220V,50HZ
Using pressure Theory pressure
0.4Mpa 1.17KN(117kgf)
0.5Mpa 1.43KN(143kgf)
0.6Mpa 1.63KN(163kgf)
0.7Mpa 1.91KN(191kgf)
Defferent capacity of the machine ,the special request of the stroke,the working table are
also pavailable.
We can design the specail hydraulic press machine,hydraulic riveting machine,pneumatic
machine for your actual needs.
