manufacture Powered Winches, cable puller - Great wall Specificaton & Trade Terms
| Model | Great wall |
|---|
| Place Of Origin | China |
|---|
| Packaging | carton |
|---|
| Brand | Great wall |
|---|
| Price Term | FOB |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 1000set/day |
|---|
| Minimum Order | 1set |
|---|
| Loading Ports | tianjinxingang |
|---|
| Delivery Time | 7days |
|---|

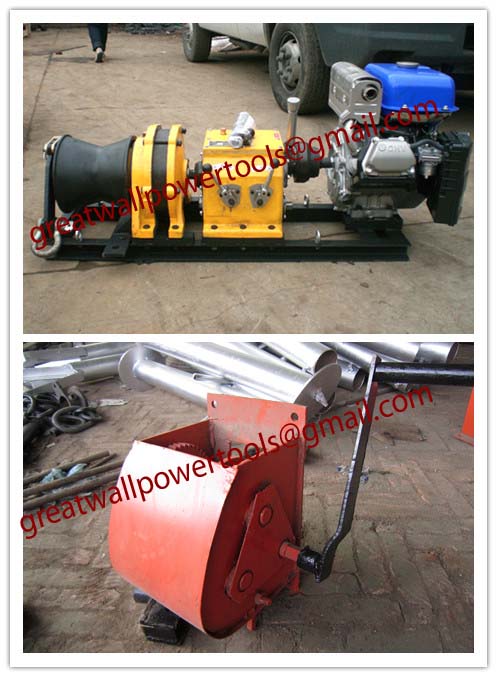

manufacture Powered Winches, best quality cable puller,Cable Drum WinchEngine Winch
This engine winch is used to work for tower assembly or moving heavy and bulky materials when stringing works for overhead conductors or OPGW,and very easy to move as that is light.
Features manufacture Powered Winches, best quality cable puller,Cable Drum Winch
Engine can start by switch.
Easy operating.
The brake can hold heavy materials when working stopped.
Double frame can reduce the machine load from engine vibration.
Transmission convert to shift the speed is very easy and smooth.
Model No. DP-1 DP-3 DP-5
Max. pull 1000kg 3000kg 5000kg
Max. speed 5-18m/min 5-18m/min 3.5-15m/min
Type Single Capstan with Hand Band Brake
Transmission Forward 4step/Reverse 1 step
Engine(gasoline) 5HP/2000rmp 8HP/1800rmp 16HP/3600rmp
Capstan dia. 130mm 160mm 280mm
Dimensions(L*W*H) 1200*620*500mm 1400*620*600mm 1600*720*700mm
Weight 220kg 300kg 450kg
*Note:Specification will be changed without any information for high quality.manufacture Powered Winches, best quality cable puller,Cable Drum Winch
