high efficiency solar panel LS3-6M - LS3-6M

high efficiency solar panel LS3-6M - LS3-6M
:
Guangzhou leishine solar technology co.,ltd
: 2011-11-09 00:54:47
:
solar panel

Inquiry Supplier / Manufacturer
Description Of high efficiency solar panel LS3-6M - LS3-6M

high efficiency solar panel LS3-6M - LS3-6M Specificaton & Trade Terms

ModelLS3-6M
Place Of Originchina
Packagingcarton
Price TermEX-Work
Payment TermT/T
Product Description

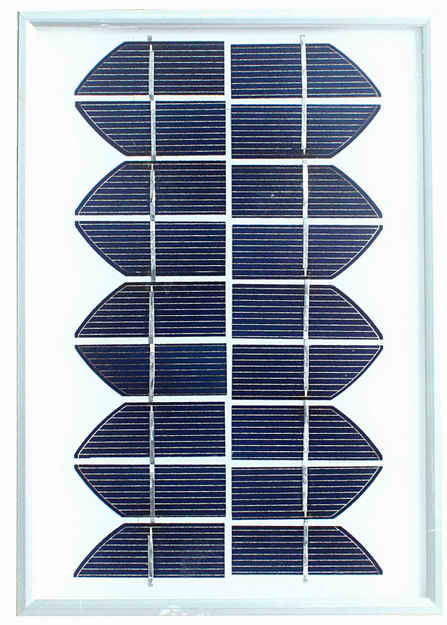

SL3-6M PV module is connected in series
by 1pcs of 250*175*25MM Mono-crystalline silicon cells.
It is including 3Wp.
.It can also be tailored to special requirements.

Applications
Large on/off-grid power stations
Rural and island electrification
Residential roof-top system
Solar street lamp
Other industrial and commercial applications

Electrical Technical Data
Power: 3Wp
Open Circuit Voltage (Voc) 10.71
Short circuit current (Isc ) 0.38
Maximum Power Voltage (Vmp) 8.75
Maximum Power Current(Imp) 0.34
Solar Cell Efficiency (%) 16
Solar module dimension: 250x175x25mm
Maximum System Voltage 600V

Physical Characteristics
Operating Temperature -40 to +90
Storage Temperature -40 to +90
Pressure Bearing 2400Pa
Wind Bearing 5400Pa
Hail Impact Test 225G steel ball drops from height 1m

Temperature Coefficients
NOCT 45±2
Temperature coefficient of Isc +0.05/
Temperature coefficient of Isc -0.34%
Temperature coefficient of Pm -0.5%
Power Output Tolerance ±3%
