fully automatic terminal crimping machine - HL-Z Specificaton & Trade Terms
Model | HL-Z |
---|
Place Of Origin | China |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|

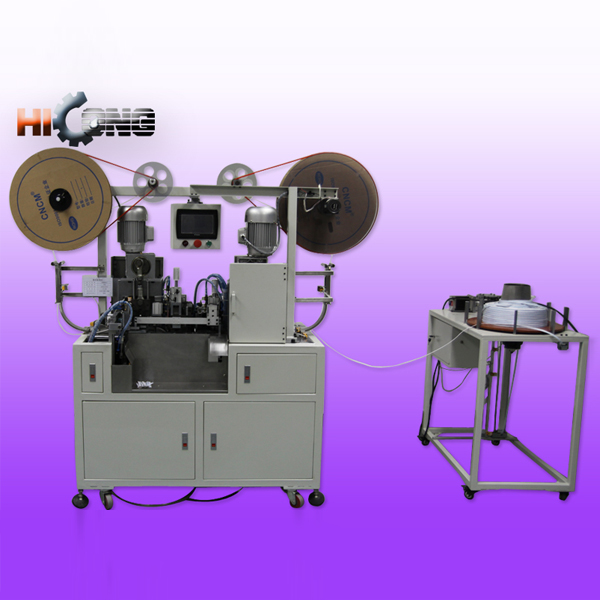

fully automatic terminal crimping machine :
1.Features:
fullautomatic flat cable terminal crimping machine is a collection of feed and cutting, stripping, crimping terminal for the integration of automatic multi-function machine. The traditional flat cable crimping machine is a manual operation, not only low efficiency, and product quality is not stable, the operating staff have to continuous high concentration vision repeat the same action, eyes easily fatigue. Our company in the wire harness equipment industry business for many years, and accumulated rich technology and experience, after more than two years of intensive research and development, introduced automatic flat cable terminal crimping machine, is for the purpose to wire processing industry to provide optimal solutions.
(1). Scope: mainly used to crimping: PH, XH,EH,ZH etc.color flat cables and terminals. SCN,SM,VH,etc, terminals and connector flat cables.
(2). Save cost: front send cable, after the end of the finished product, all process automatic completion, for customers to save a lot of the cost of production.
(3). Stability: the eccentric shaft and CAM structure make terminal, terminal crimping to equilibrium, make the wiring harness terminal crimping in order, good consistency, the product quality is very stable, machine operation stability, high rate of finished products.
(4). High precision: the stepping motor control cutting, points cable peeling length, the accuracy of 0.1 mm.
(5). Location accurate: adopt servo motor drive control flat cable go position, terminal crimping control accurate, to ensure the wire harness conduction performance.
(6.) Crimping variety: use the steering can switch over the flat cable on both ends of the terminal crimping direction.
(7). Full automatic: full automatic production, save labor power cost: from into flat cable fixed-length cutting peeling points cable, crimping double (single) head terminal is automatic completion, does not need to participate in hand.
(8). Covers an area of less: each equipment covers an area of less than 2.5 square meters, save workshop rent.
(9). High efficiency: pressure 18000 PCS/H (MAX), the machine can work 24 hours.
(10). Adjustment simple: ordinary employees just simple training, can one operand several machines.
2. Basic Parameters
Part number
HL-Z
Packaging size
1.45mX0.850mX1.75m
weight
About 527KG
Air pressure
0.4MPa-0.6MPa
Voltage
220V 50Hz
rated current
15A
power
3300W
3. technical parameters
Flat cable parameters
Cutting length
72mm-9999mm
Cutting precision
±0.5mm
Stripping Length
2mm-10mm
Max. width
28mm
Max.P No.
20P
Single width
0.8mm-2.5mm
parameters
Crimping speech
18000PCS/H(Max.20P)
Special function
Single side crimping, double side crimping
Interval crimping ,positive and negative crimping
