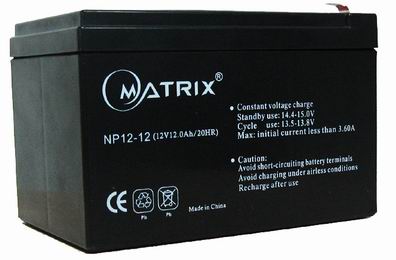

electric lighting battery - 12V 12AH Specificaton & Trade Terms
| Model | 12V 12AH |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
SPECIFICATIONS
Nominal Voltage 12 V
Rated Capacity (20 hour rate) 12 AH
Dimensions
(Length*Width*Height*Total Height )/mm 151*98*94*100 mm
Weight Approx 3.15kg
CHARACTERIESTICS
Capacity
25℃ 20 Hour rate (0.60A) 12.00 AH
10 Hour rate (1.10 A) 11.00 AH
5 Hour rate (2.04 A) 10.20 AH
1 Hour rate (7.20 A) 7.20 AH
1.5 Hour discharge to 10.5V 4.00 A
Internal Resistance Fully charged battery at 25℃ 13 mΩ
Terminal Type T2 or T3
Charge
(Constant Voltage) Cycle use Initial Charging Current less than 4.80 A
Voltage 14.10~14.40V
Float use Voltage 13.50~13.80V
