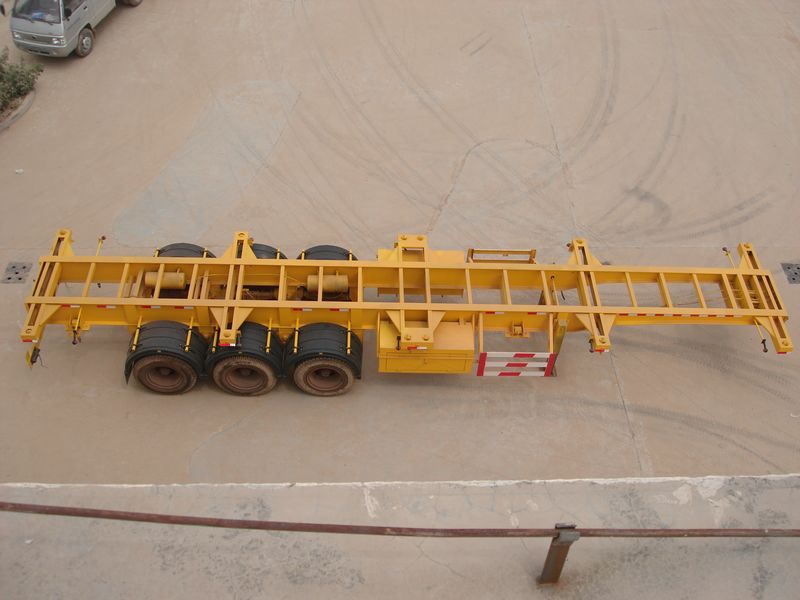

container chassis /semi trailer - 40ft.20ft Specificaton & Trade Terms
| Model | 40ft.20ft |
|---|
| Place Of Origin | China |
|---|
| Packaging | Can be put into 40HQ Container for shipping |
|---|
| Brand | Tongya Da |
|---|
| Gurantee | 6 months |
|---|
| Certifications | ISO,FORME,CCC |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
| Supply Ability | 50units per month |
|---|
| Minimum Order | 2 units |
|---|
| Loading Ports | Qingdao or Tianjin of China |
|---|
| Delivery Time | 15 workdays for two units |
|---|
Manufacturer Name Shandong Liangshan Tongya Automobile Co.,Ltd
Type 20feet/40feet skeleton semi trailer
Shipping Terms Shipping by containers
Delivery time 13 workdays for one set skeleton semi trailer
Weight:
Tare Weight 3650kg/4520kg
Loading Capacity 26T/30T
Axle Weight Load 13T/16T
Specification:
Axle number Two
Axle specs. FUWA or BPW Brand
Suspension Common mechanical
Wheel 11.00R22.5, Vacunnm tire /Triangle or Double Cone Brand
King Pin JOST 50# or 90# traction pin
Dimensions
(LxWxH) 7160×2500×1550mm,12350×2480×1580/1770mm
Support legs 28Tons (Tongyada Brand)
Rim 8.25×222.5 Vacunnm tire Zhengxing Brand
Wheelbase 4310/4490+1300mm，7940/8340+1310
Steel Spring 8/8 pieces per axles
Twist Locks 4/8 pieces
Tire:
Number of Tire can be choose freely
Spare Tire Carriers 2 pieces
Frame: (specs. and materials)
The material of
Main beam The height of the beam is 450/500mm,upper plate is 14mm,down plate is 16mm,middle plate is 6mm.
Brake:
Brake Kemi Brand of China
Brake Chamber Two double and two single chamber( TKL brand )
ABS system without
Electrical:
Voltage 24V
Receptacle 7 ways(7 wire harness)
Light color:
Side marker lamp Orange
Rear lamp Red
Turn signal lamp Orange
Miscellaneous:
Painting According to the requirement of the buyer
Marking According to the requirement of the buyer
Side Guard According to the requirement of the buyer
Tools box One pieces or According to the buyer
