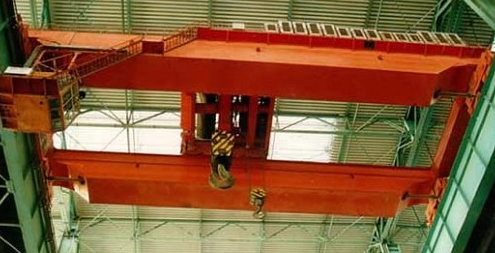

YZ 100/32T Casting Overhead Crane - YZ100/32T Specificaton & Trade Terms
| Model | YZ100/32T |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
Max Lifting capacity: 100/32T
Working class: A7
Span: 19m, 22m, 25m
The lifting height of the main hook: 18m, 20m, 25m
The lifting height of the auxiliary hook: 20m, 22m, 27m
The hoisting speed of the main hook: 6.8m/min, 8.6m/min
The hoisting speed of the auxiliary hook: 9.5m/min, 12m/min
The hoisting speed of the trolley: 37m/min, 41m/min
The hoisting speed of the crane: 68m/min, 77m/min
The max wheel load : 520kn, 545kn
Recommended steel track: QU120
Power supply: 3 phase, 380v, 50Hz
OEM orders are welcome.
Your requirements about the products are highly appreciated.
New brand and good service will satisfy you.
High quality and favorable price are the core competition of our company.
