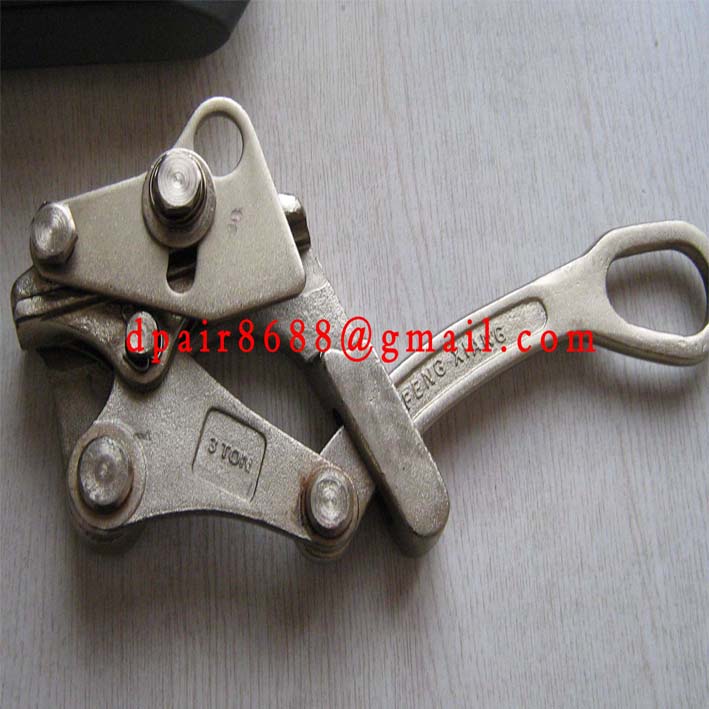

Wire Pulling Grips
We manufacture ,wholesale ,and retail various grips,such as:copper and steel wire grip,Aluminium and A.CS.R grips,insulated cable grips,conductor grips,ground wire grips,etc.
This kinds of cable grips is made by Aluminium alloy or iron material,has light weight,easy handling,no slipping. Best suitable for linesmen, bridgebuilders, industry and agriculture.
We provide the follwing kinds of cable grips.
Application: steel-cored aluminium strand wire, communication cable, copper wire, aluminium wire.
Product No. Applicable conducting wire(LGJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
LSJ-1 25-70 1000 6-14 1.05
LSJ -2 95-120 1500 13-18 1.40
LSJ -3 150-240 2500 17-24 2.9
LSJ -4 300-400 4000 25-37 4.0
LSJ -5 500-630 5000 30-40 6.7
Application: insulated conductor, bare copper wire, bare aluminium wire.
Product No. Applicable conducting wire(LGJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
SJKL-1 25-70 1000 Φ13.8-Φ17.8 1.55
SJKL-2 95-120 1500 Φ19.6-Φ21 2.4
SJKL-3 150-240 2500 Φ22.6-Φ26.4 3.6
SJKL-4 300-400 2500 Φ27.4-Φ29.8 5.4
Application: steel strand, steel-cored aluminium strand wire, copper and aluminium wire.
Product No. Applicable conducting wire(GJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
SKK-1 25-50 2000 6-10 2.4
SKK-2 50-70 3000 10-12 4.0
SKK-3 70-120 5000 12-18 5.4
Application: steel-cored aluminium strand wire, communication cable, copper wire, aluminium wire.
Product No. Applicable conducting wire(LGJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
GSJ-1 25-70 1000 6-14 1.5
GSJ -2 95-120 1500 13-18 2.9
GSJ -3 150-240 2500 17-24 4.2
Application: steel cable, steel strand, steel wire rope.
Product No. Applicable conducting wire(GJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
SKD-1 25-50 2000 6-11 1.3
SKD-2 70-120 5000 12-16 1.7
Application: steel cable, steel strand, steel wire rope.
Product No. Applicable conducting wire(GJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
SKDS-1 25-50 1000 6-11 1.9
SKDS-2 50-70 1500 10-13 2.4
SKDS-3 70-120 2500 12-15 3.5
Application: steel cable, steel strand, steel wire rope.
Product No. Applicable conducting wire(GJ) Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
SKDP-1 25-50 1000 6-11 2.3
SKDP-2 50-70 2000 10-13 2.7
SKDP-3 70-120 3000 12-15 3.7
Application: used for weaving anti-twist steel wire rope.
Product No. Rated load (Kg) Applicable wire diameter(mm) Weight (kg)
SFK-1 5000 11-15 6.5
SFK-2 7000 16-18 8.5
SFK-3 12000 19-21or22-24 13.6
SFK-4 20000 26～30 32.5
Application: used for OPGW gripping..
Product No. Applicable range (mm) Rated load (Kg) Jaw shape Weight (kg)
SKG-1 Φ11.7-Φ17 2500 round 5.1
Application: steel strand, steel-cored aluminium strand wire, all kinds of conducting wire.
Product No. Applicable conducting wire(GJ) Rated load (Kg) Max. applicable diameter(mm) Weight (kg)
SKQ-1 GJ35 1500 9 2.1
SKQ-2 GJ50 2000 10 2.1
SKQ-3 GJ70 2500 12 3.6
SKQ-4 GJ100 3000 14 3.6
Application: used for ground wire (steel strand or aluminium steel stranded cable) construction.

Product No. Applicable conducting wire(GJ) Rated load (Kg) Max. applicable diameter(mm) Weight (kg)
SSE-1 GJ25 1000 9.5 2.5
SSE-2 GJ35 1000 9.5 2.5
SSE-3 GJ50 1500 10 3.5
SSE-4 GJ70 2000 12.5 5.0
SSE-5 GJ100 3000 14 5.0

Application: steel rope, steel strand, copper wire, insulated wire.

Product No Applicable wire diameter(mm) Rated load (Kg) Weight (kg)
SD-1000 2.6-15 1000 0.7
SD-2000 4-22 2000 1.5
SD-3000 16-32 3000 2.6
