Warp Beam For Water Jet Loom - JM04

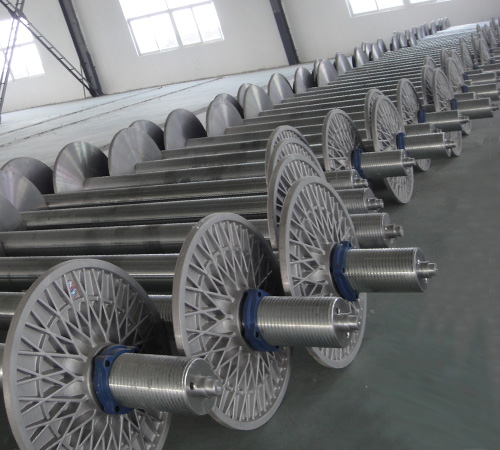

Warp Beam For Water Jet Loom
Features：
1. warp beam for water jet loom
2. attractive and durable
3. corrosion resistance
4. high accuracy
Main technical parameters：
1.Thickness of warp beam arm: 6 mm, 7 mm, 8 mm, 10 mm
2.Disc diameter: 800 mm
3.Model: 190, 210, 230, 280, 380, etc.
4. Gear: ductile iron and plain cast iron
5. Material：The disc is made of aluminum-magnesium alloy with aging treatment, and shaft pipe is made of 20# seamless pipe.
6. Spec: Aluminum disc: 660mm-1250mm
7. Pipe spec: 180mm-460mm
8. Width: 1600mm-2600mm
9. Surface: Aluminum disc is anodized, and the pipe is painted or galvanized.
10. Flange tube body: high strength aluminum alloy material, and use the low voltage centrifugal forging, and after heat treatment, so has the best rigid and durability.
11.the function of dynamic balance, even high-speed rotating, can maintain good compatibility with knitting machine.
12.After hard machine coating processing, completely prevent corrosion and surface scratches.
Even use a few years later, also keep their durability and precision
13.It is suitable for long fiber, short fiber, industrial cloth, and glass fiber.
company website: ***
SPECIAL SPECIFICATION IS MADE TO ORDER!
