Vehicle armour - WSFZ Specificaton & Trade Terms
| Model | WSFZ |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|

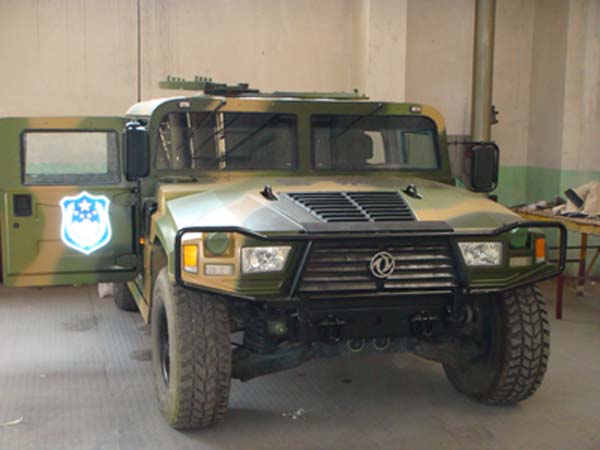

Armor plate / Vehicle armour
Level III Armor Plates for Vehicles
Ballistic Performance :
7.62 x 51mm NATO multiple Shots
7.62 x 39mm FMJ,MSC,API multiple Shots
5.56 x 45mm M193,SS109 multiple Shots
Construction: AL2O3/AFRP / AL2O3/UHMWPE / SiC/AFRP /
B4C/UHMWPE / UHMWPE*
Thickness : 20mm / 20 mm / 22 mm / 22 mm / 25 mm
Weight : 38kg/m2 / 36 kg/m2 / 32 kg/m2 / 28 kg/m2 / 24
kg/m2
* Except AP and API shots.
Level IV Armor Plates for Vehicles
Ballistic Performance :
7.62 x 63mm M2 AP multiple Shots
7.62 x 54mm API multiple Shots
7.62 x 39mm API multiple Shots
Construction: AL2O3/AFRP / AL2O3/UHMWPE / SiC/AFRP /
B4C/UHMWPE
Thickness : 20mm / 20 mm / 22 mm / 22 mm
Weight : 52kg/m2 / 50 kg/m2 / 45 kg/m2 / 38 kg/m2
