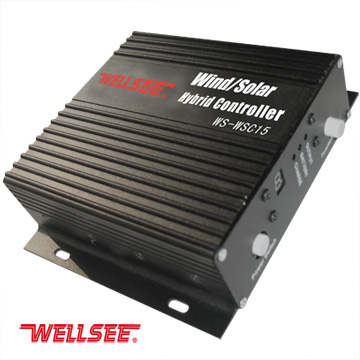

Useful Wind/Solar Hybrid Controller - W-WSC30

Wellsee Wind/Solar Hybrid light controller (Wellsee Wind/Solar Hybrid intelligent controller)WS-WSC series is a new product which is designed and self-developed by Wuhan WellseeNew Energy Industry Co.,Ltd with advanced control circuit. The new generation wellsee wind/solar hybrid intelligent light controller is different from other controllers, which is specially designed for wind/solar hybrid street light in a group of wind power,solar power, this controller also has light control+time control exact timing control function which can extactly control loads turn on/off time (Optional)

Functions:
1.Microprocessor intelligent control, exactly control.
2.Anti-surge protection,short-circuit protection and reversed polarity protection.
3.Overload protection,Overcharge protection,overdischarge protection.
4.Turn on light at dask autotmatically and turn off light at dawn automatically according to light intensity.
5.Temperature compensation function.
6.Recognize the wind turbine charging voltage and charging current exactly with safe and complete multiple wind turbine brake protection system.


MODEL WS- WSC 10A WS- WSC 15A
System voltage 12V/24V Automatic voltage recognition
Max charge current 10A 15A
Max discharge current 10A 15A
Rated power for wind turbine 100W - 400W（12V/24V）
Charge off voltage HVD 14.4V / 28.8V
Low Voltage Directive LVD 10.8V / 21.6V
Low Voltage Restore LVR 11.8V / 23.6V
Charge loop drop
