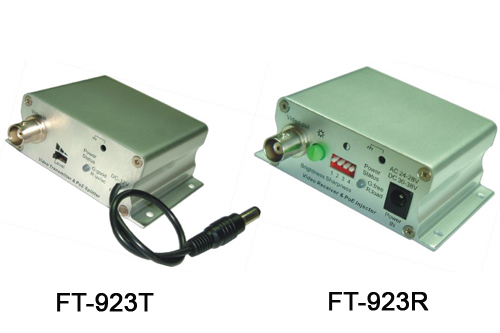

UTP video balun - FT-923T/R Specificaton & Trade Terms
Model | FT-923T/R |
---|
Place Of Origin | FUZHOU,CHINA |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|
Power over Ethernet (PoE) technology describes a system to transmit electrical power, along with data, to remote devices over standard unshielded twisted-pair(UTP) cable. In application of security protection the PoE PVD transceiver use one UTP cable to replace power, video co-axial and data cables. Working hours much lessened and 70% cable cost saved.
◎ Tech Info.
Specification: 1CH Video/Power/Data Passive
Video Frequency response:DC-6Mhz Common-mode/Differential-mode Rejection:15Khz 6Mhz 60dB type
Audio/data : YES(Audio 14dB)
Power transmission :AC 24-28V 0.4A OR DC 30-38V 0.4A input;Constant DC 12V output
300M UTP at 0.75A max
Impedance : Coax, male BNC:75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector:100Ω
Wire type : One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:
DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
Surge suppression: 6000V 1.5μS * 50μS
Control :NO
LED IND :FT-923T Power good; FT-923R PoE unload/load
PoE type: FT-923T Power Splitter; FT-923R Power Injector
UTP Port :RJ45
Power :YES
Dimensions(mm) : 81*58*30
Weight(g): 80
Environment Temperature:-10~+50℃ Humidity:0~95%
