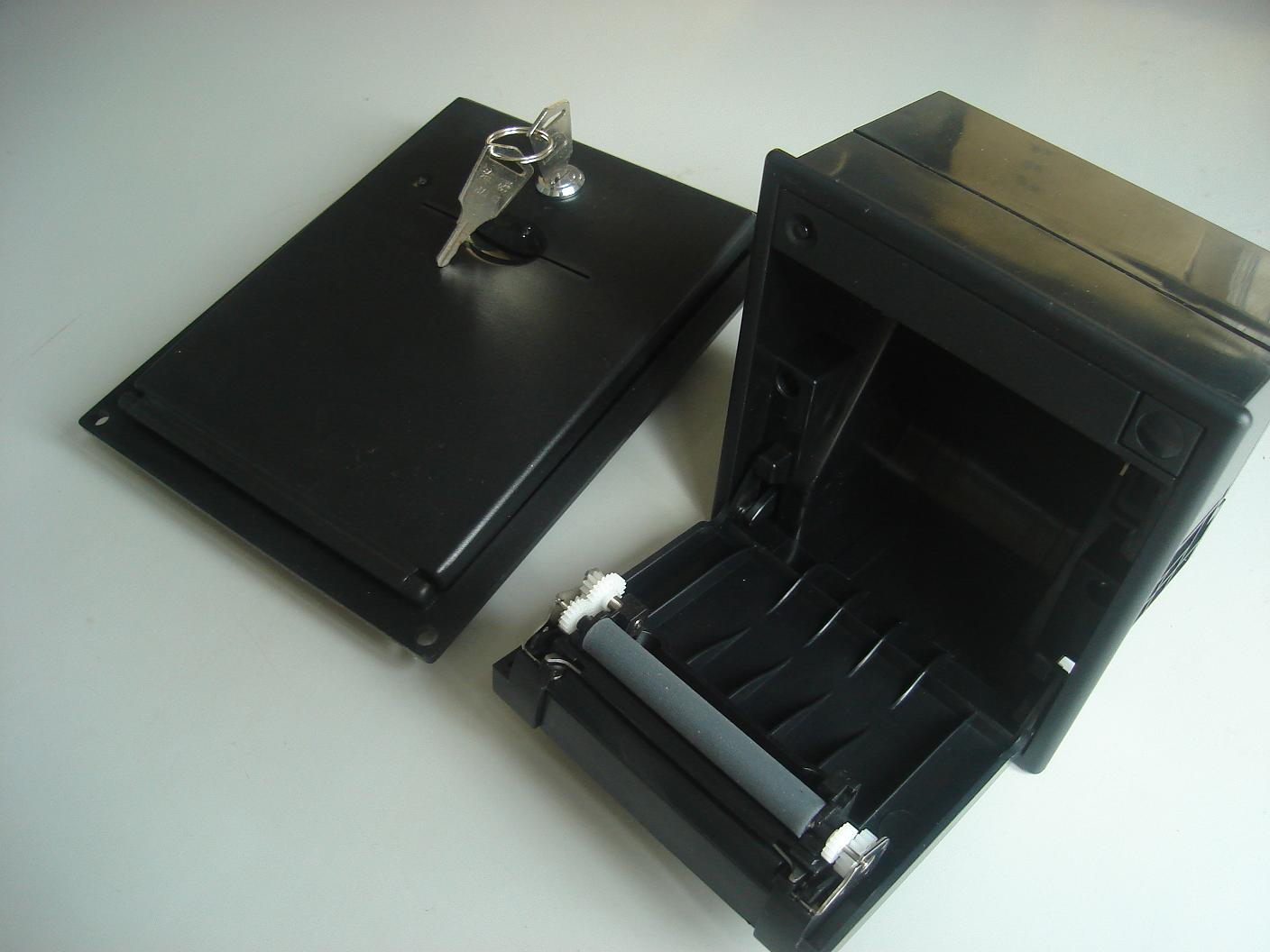

Thermal Printer with Cutter C2 - WH-C2

1. With set cutter/half cutter, scissors type paper cutting, with hard-wearing cutter
2. Very silent printing thru direct thermal printing method
3. High speed (62.5mm/sec, based on character ratio 1/6)
4. Paper end sensors function and self-motion memory printing function
5. Support 9V-24V power
6. Serial (RS-232, TTL) interface/Parallel interface
7. Abundant figure/curves/characters print function
8. Add coordinate curve printing function
9. Easier paper loading (key ejecting type)
Item Specification
Printing method Direct thermal line printing
Paper out detection paper end sensors function
Paper loading way easy paper loading
Paper width 57 mm
Print width 48 mm
Resolution ration 8 dots/mm(384 dots/line)
Life of printing head 6×106 character lines
Printing speed 65mm/sec(when the character ratio is 25%.)
Character size 6x8dots , 8x16dots,or12x24dots
Chinese character library GB2312,16x16dots,or24x24dots
Outline dimension(WxHxD mm) 168mmx132mmx65mm
Installation dimension(WxH mm) 106mmx140mm / 114.5mmx150mm
Inlaid deepness 55mm/58mm
Paper supplied Thermal roll paper (57mm wide, 50mmø)
Interface Serial(RS-232C, TTL)/Parallel interface
Input Power DC 9V-24V, 25W
Operating temperature 5°C ~ 50°C
Storage temperature -20°C ~ 60°C
Operating humidity 10°C ~ 80°C
Storage humidity 10°C ~ 90°C
