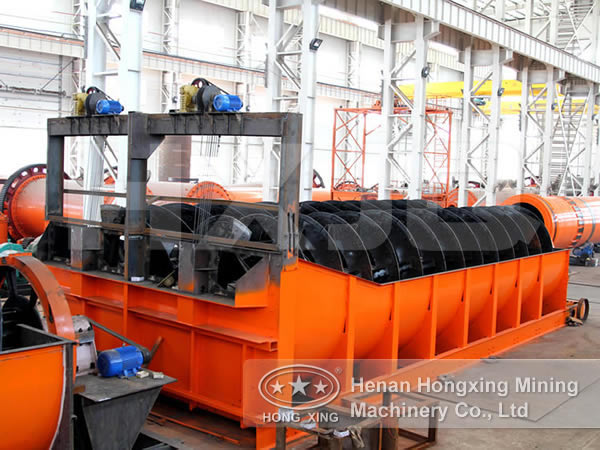

Spiral Classifier - FC/FG

Spiral Classifier
FOB Price: US $3,887 - 91,003 / Set
Port: Qingdao,Tianjin,Shanghai or others
Minimum Order Quantity: 1 Set
Supply Ability: 100 Sets per Month as requested
Payment Terms: L/C, D/A, D/P, T/T, Western Union

Quick Details
Condition: New Type: Spiral Separator, separator Place of Origin: Henan, China (Mainland)
Brand Name: Hongxing Model Number: FC/FG After-sales Service Provided: Engineers available to service machinery overseas
Certificate: ISO9001:2000 Application: Ore Weight: 0.7-84.8 t
Color: Orange Warranty: 1 Year

Hongxing brand is rated as "China Famous Brand" for superb performance.

Packaging & Delivery
Packaging Detail: Standard containers,or in bulks, bare main machines, motors and small parts are packed in wooden cases.
Delivery Detail: 25 working days after placing the order

Specifications
China Hongxing Spiral Classifier: 1. Simple structure 2. Less wear parts 3. Safety and easy operation 4. High efficiency
Brief Introduction to Spiral Classifier
Spiral classifier, which can also be called spiral separator, is one of the ore dressing equipment which classifies the materials using the principle that different solid materials have different settlement speed in the liquid due to the difference in proportion. Spiral classifier is also called classifier for short. The classifiers can be divided into high weir type, single and double spiral, and immersed single spiral and double spiral type.
Structure of China Spiral Classifier
The China spiral classifier is mainly composed by driving device, spiral part, chute, lifting device, lower bearings (bush) and the discharge valve.
Application Ranges of Screw Classifier
The screw classifiersmanufactured by Hongxing Machinery are widely used in the separation of ore in closed circuits with ball mills, grading ore and fine slit in gravity mills, grading granularity and flow of metal ore-dressing, and de-sliming and dehydrating in washing. It has the such features as simple structure, reliable working and convenient operation.
Working Principle of Ore Spiral Classifier
According to the principle that different particle sizes with different proportion have certain terminal velocity, the fine particles float on the water and overflow out while the coarse particles sink to the bottom and then they will be pushed upward and discharged. The powders will be filtered, with the substandard particles screwed into the feeding port by the spiral vanes and the fine ones discharged from the overflow pipe. The head of the screw axis and the shaft adopt the pig iron cover, which is wear-resisting and durable. There are manual and electric lifting devices separately.
A Famous Spiral Separator Brand in China-Hongxing Brand
Henan Hongxing Mining Machinery Co., Ltd is a professional classifier and spiral classifier manufacturer in China, 'Hongxing Brand' ore spiral classifier classifier enjoys high popularity among customers at home and abroad. The spiral classifier price of our company is the competitve compared with the classifiers with the same specifications manufactured by other companies.
