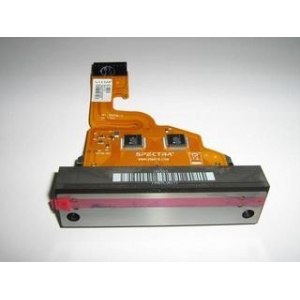

Spectra SM 128 Printhead GENUINE - 128

Number of addressable jets: 128
Nozzle spacing: 508 microns [0.020 in.]
Nozzle diameter: 50 microns
Calibrated drop size: 50 picoliters
Adjustment range for drop size: 40 - 55 picoliters
Drop size variation, 1 sigma*: 4%
Jet straightness, 1 sigma: 3 mrad [0.17°]
Nominal drop velocity: 8 m/sec
Drop velocity variation, 1 sigma*: 5%
Crosstalk, maximum: 5%
Operating temperature range: up to 90°C [194°F]
Fluid viscosity range (at jetting temperature): 8 - 20 cP
Compatible jetting fluids: Organic solvents, UV curables
Maximum operating frequency: 20 kHz

Also Available:
Spectra Printhead SE 128
Spectra Skywalker Printhead JA 128/50
Spectra SM 128 Print head
Spectra SM-128 AA
Spectra Galaxy JA 256/80 AAA


Price: $435.85
