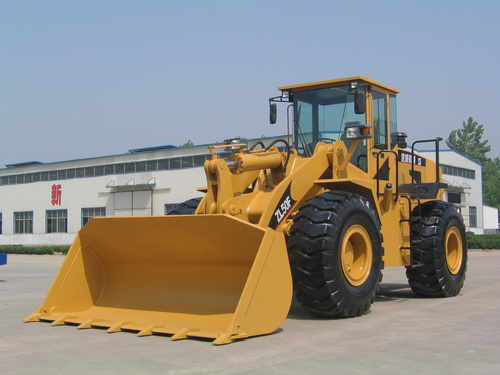

Description Of Specifications for ZL50F wheel loader - ZL50F

Specifications for ZL50F wheel loader - ZL50F Specificaton & Trade Terms

ModelZL50F
Place Of OriginCHINA
Price TermEX-Work
Payment TermT/T
Specifications for ZL50F wheel loader
1、Technical features
Item Performance Item Performance
Standard bucket capacity (m3) 3.0 Min. turning radius outside rear wheel (mm) 6044
Rated load (kg) 5000 Min. turning radius outside bucket (mm) 6707
Max. traction force(by engine)(kN) ≥150.0 Max. break force(kN) ≥160.0
Static tipping load (kN) ≥100 Grade ability (ー) 30
Travel speed Speeds Ⅰ Ⅱ Ⅲ Ⅳ
Forward (km/h) 0~13.5 0~38 覧 覧
Reverse (km/h) 0~17 覧 覧 覧
2、Dimension and weight
Item Performance Item Performance
Length(with bucket on ground) (mm) 8020 Bucket Width (mm) 3050
Height (mm) 3382 Tread (mm) 2144
Width from outside wheel (mm) 2740 Wheelbase (front/back)(mm) 3200(1600/1600)
Min. ground clearance (mm) 457 Operating weight (kg) 17000
Max Dumping height(-50コdump angle) (mm) 3120 Axles 2
Dumping distance(-500dump angle)(mm) 1120
3、Engine
Item Performance Item Performance
Model SHANGCHAI 6121ZG19,WD615 Cylinder No. 6
Type Straight-lined, water cooled, dry cylinder coat, direct injection Cylinder bore/stroke(mm) 126/130
Rated power (/kW) 162 Min fuel consumption ration (g/kW.h) ≤215
Rated rpm(r/min) 2200 Max torque (N.m) 843
Displacement(ml) 9.726 Emission standard Ex-JB/T8891
4、Transmission
Item Performance
Torque converter Type Single phase, 4 element, double turbo hydraulic converter
Torque ratio 4.19
Cooling system Circulated, watercooled
Inlet oil pressure(MPa) 0.549~0.6
Outlet oil pressure(MPa) 0.275~0.343
Gearbox Type Planetary power shift
Shift Forward 2,Reverse 1
Gear ratio Forward Ⅰ 2.155
Forward Ⅱ 0.578
Forward Ⅲ 覧
Forward Ⅳ 覧
Reverse Ⅰ 1.577
Reverse Ⅱ 覧
Model CB130
Working pressure (MPa) 1.1~1.5
Main drive Type Single stage, spur gear
Gear ratio 5.286
Final reducer Type Single stage,planetary shift
Gear ratio 4.4
Driving axle
and tire Type Driving axle and tire
Tire specification
Tire pressure(MPa) Front wheel 0.333~0.353
Rear wheel 0.275~0.294
Brake system Service brake Air over hydraulic disc brake on 4 wheels
Pressure (MPa) 0.45~0.68
Parking brake Air-room braking
5、Steering system
Item Performance
Type Core-closed, full-hydraulic redirector and flow increasing valve
Pilot-acinated valve Pressure: 14MPa,flux:160L/min,radius:25mm
Pump Pressure:14MPa,flux:160L/min
Steering cylinder: cylinder boreラpiston rod diameterラstroke 90ラ50ラ424(mm)
Redirector BZZ-100 Core-closed, full-hydraulic redirector
Steering angle (ー) 38ー
Working pressure(Mpa) 14MPa
6、Working system
Item Performance
Type Mechanical and manual control
Boom cylinder - cylinder boreラpiston rod diameterラstroke (mm) 165ラ90ラ767
Bucket cylinder- cylinder boreラpiston rod diameterラstroke (mm) 180ラ90ラ538
Pump CBGJ3100A
Multiple directional control valve type pressure:18MPa,flow:250L/min
Priority valve model 覧
Working pressure 18 MPa
Lifting time(fully loaded) ≤5.5s
Lowering time, (empty,) ≤3.0s
Dumping time (empty,) ≤1.0s
Total ≤9.5s
7、Service refill capacities
Item Performance Item Performance
Fuel 300L Engine 20L
Hydraulic oil 200L Gearbox 45L
Axle (main drive and final reducer) 32L Brake system 4L
