Snug stowing Anchor:
1.Material: Steel ZG200-400C
2.Weight: 200KGS-20000KGS
3.Certificate: ABS, LR, BV, NK, DNV, RINA, RS, IRS,CCS
more detail please contact with us.

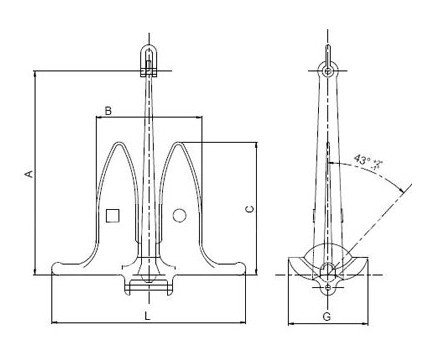

Anchor Weight A B C D E F G H J Proof Test
200 30 7/8 29 11/16 12 1/16 20 1/8 16 3/16 5 1/2 1 4 2 3/4 10100
250 33 5/16 32 13 21 11/16 17 7/16 5 1/2 1 4 3 12400
300 35 5/16 34 13 3/4 23 18 1/2 5 1/2 1 4 3 1/8 13000
350 37 3/16 35 3/4 14 1/2 24 1/4 19 1/2 5 1/2 1 4 3 3/8 14300
400 38 7/8 37 3/8 15 1/4 25 3/8 20 3/8 5 1/2 1 4 3 1/2 15600
450 40 3/8 38 7/8 15 3/4 26 3/8 21 1/8 5 1/2 1 4 3 3/8 16900
500 41 3/4 40 1/4 16 3/8 27 1/4 21 7/8 7 1 1/4 4 7/8 3 3/4 18300
