Small Wind Turbine with CE ROHS - WS-Wt400

Small Wind Turbine with CE ROHS - WS-Wt400
:
Wuhan Wellsee New Energy Industry Co., Ltd
: 2013-01-09 22:53:35
:
Wind Turbine

Inquiry Supplier / Manufacturer
Description Of Small Wind Turbine with CE ROHS - WS-Wt400

Small Wind Turbine with CE ROHS - WS-Wt400 Specificaton & Trade Terms

ModelWS-Wt400
Place Of OriginCHINA
Price TermEX-Work
Payment TermT/T
Introduction:
Wellsee New Energy Industry Co., Ltd. is a high and new technology enterprise in wind power industry. It has strong technical force. Specially engaged in research and development, production, sales, service of the middle and small wind generators, Wind/Solar Hybrid light system. And provides solutions for small and medium-sized wind farms. Wellsee company pays attention to the scientific research input, and has a group of rich experience of professional talents and related test equipments in pneumatic analysis, mechanical design, design and manufacturing and electric motor. Each model has a scientific pneumatic calculation, strength analysis, electromagnetic calculation, efficiency study, vibration, and matching analysis, and has the detailed design, testing and production plan. The Real machine through the strict wind tunnel test, and has detailed test report to the overall performance and various working conditions.

PERFORMANCE FEATURES:
Wind and light are inexhaustible renewable energy for human. Due to the needs to the environment and the shortage of traditional energy, and support from the government of the industrial policy, wind turbines and photovoltaic energy application get popularity, the system cost greatly reduced, and the configuration is more stable. Since there is abundant sunshine during the daytime but may small wind, and there is no sunshine in the night but may be strong wind, the wind and solar energy have strong complementarities. It has the advantages of solar energy and wind energy products, and make up for the insufficient when wind or photoelectric independent application. It is the perfect combination of the new energy comprehensive development and utilization.

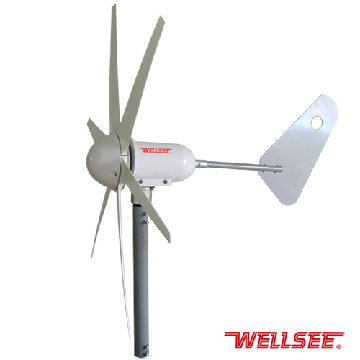

Wellsee A horizontal axis wind turbine WS-WT 300W/400W FEATURES:
Use the alien magnet and unique winding structure, low starting wind speed, 2.5 m/s will start, without any auxiliary starter.
Use nylon and carbon fiber composite materials for leaves, corrosion resistant, high temperature resistant, fight the wind, and reasonable pneumatic appearance, make the machine run low noise.
Use of rare earth permanent magnet parts, reducing equipment volume and weight.
Streamline appearance design, some models used the animal imitation type with effect extremely good vision, impressions pleasing.
The power supply output used the winding against device.
Electrical wiring adopt "fool" type assembly, by simply connecting the plugs according to the marks, it can prevent wiring error.
Reduce the working parts as more as it can, improve the mass movement rate fell.
Mould -production, guarantee the product always has high level quality.
Our company researched and developed controller and inverter independently. Its design based on fan manufacture characteristics, and supporting full operation more stable.s
Extensibility, leave all kinds of access for jack, have extended the range of use.
The machine can run without person, over-voltage, discharge, the flow, winds all have automatic processing protection, various operation instructions understood, but also more extended battery service life.
Attune used the damping and "the wave" design, accurate and smooth.
Tower stem assembly adopt "gravity taper" device, reliable, easy to install.
Shell adopts special casting material, the metal combination with high corrosion resistance and can be used for high corrosion area.
The machine strictly sealed before out of our factory, defending dust, and salt fog, the rain into inside of motor, fan internal and external adopted the thermal unique structure.
Adapts Wellsee wind/solar hybrid controller accurately identify the fan recharging voltage, current, with security, complete multiple fan brake protection mechanism.

Applications
A horizontal axis wind-driven generator, widely used in scattered residents, posts, meteorological offices, road, landscape, area lighting and monitoring, communication station, ships, etc. Its unique advantage is very outstanding in the urban road construction, landscape such municipal lighting area. It can not only make use of green energy but also adds a beautiful bright landscape.
A.Wind/Solar hybrid light system
B.Industry, agriculture, business, academia, soldiers, agriculture, forestry, animal husbandry, fishery and ect.
C.Communication base station.
D.Road monitoring.
E.Household

PTECHNICAL PARAMETERS:
Model WS-WT 300W/400W
Rated Power (W) 300/400
Rated voltage (V) DC28
Wind wheel Diameter (m) 1.62
Start wind speed (m/s) 2.5
Rated wind speed (m/s) 12
Safe wind speed (m/s) 40
Working wind speed range (m/s) 3~20
Speed regulation method Mechanical yaw + electromagnetic brake
Rated Rotational speed (r/min) 420
Fuselage materials Aluminum alloy ABS Engineering plastic
Tower height (m)-and cable type tower 6
Tower height (m)-independent type tower 6
Leaf material Nylon add carbon fiber composite materials
Leaf number 6
generator Three-phase permanent synchronous generators
Suggest battery capacity 12V100Ah*2pcs
Winds protection Unloading + electromagnetic brake
Environment temperature -25℃~+45℃
Fan wiring (RVV) specifications (mm2) 2.5
Fan wiring length (m) 10
note Wind speed above 15 m/s
start-up electronic speeding brake system
