SIM18 - GPS module

SIM18 - GPS module
:
AND Technologies co.,ltd (ANDTech)
: 2011-07-20 01:48:54
:
SIM18

Inquiry Supplier / Manufacturer
Description Of SIM18 - GPS module

SIM18 - GPS module Specificaton & Trade Terms

ModelGPS module
Place Of OriginChina
Price TermEX-Work
Payment TermT/T
1)SIM18 GPS module
2)Technical support or special product development

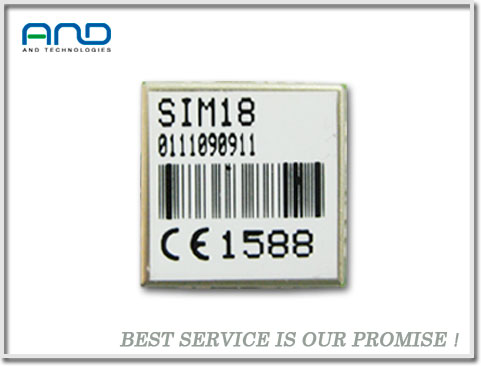

SIM18 GPS module

SIMCom presents an ultra compact and reliable GPS module-SIM18. This is a standalone L1 frequency GPS module in a SMT type and it is designed with SiRF4 high sensitivity navigation engine, which allows you to benefit from small dimensions and cost-effective solutions.

Mechanical data
*Dimensions: 11*11*2.2mm
*Weight: 0.5g

Interfaces
*Serial interfaces UART, SPI or I2C Additional master mode I2C
*Digital I/O -1 NReset
-1 EINT0 input
-1 ON_OFF input
-1 WAKEUP output
-1 time pulse
*Protocols NMEA, OSP

Performance data
*Receiver type 48-channel SiRF4 engine
GPS L1, C/A Code
*Max. update rate 1Hz
*Sensitivity1
-Tracking: -161 dBm
-Reacquisition: -160 dBm
-Cold starts: -147 dBm
*Time-To-First-Fix2
-Cold starts: 35 s (typical)
-Hot starts: 0.6 s (typical)
* Accuracy
-Position3: 2.5m CEP
*Speed4:
