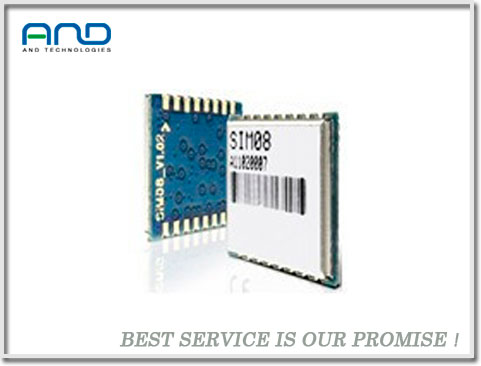

SIM08 SIMCOM GPS module

Inquiry Supplier / Manufacturer
Description Of SIM08 SIMCOM GPS module - GPS module

SIM08 SIMCOM GPS module - GPS module Specificaton & Trade Terms

ModelGPS module
Place Of OriginChina
Price TermEX-Work
Payment TermT/T
1)high performance host-based GPS module SIM08
2)STE engine GPS module SIM08/SIM18

1)high performance host-based GPS module SIM08
2)STE engine GPS module SIM08/SIM18

SIMCom presents a high performance host-based GPS module-SIM08, It cooperates with SIM900 module in offering best-in-class acquisition sensitivity, tracking sensitivity, Time-To-First-Fix, accuracy and ultra-low power consumption, allowing you to benefit from small dimensions and cost-effective solutions.

Mechanical data

* Dimensions: 11.5*9.5*2.3mm

* 16 SMT pads (castellation). 1.2mm pitch

* Weight: 0.4g

Interfaces

* Serial interfaces Work with SIM900 over SPI

* Digital I/O PWR_CTL

NRESET

* Protocols NMEA0183

Performance data

* Receiver type

- 42-channel

- GPS L1 C/A code

- High-performance STE engine

* Max. update rate: 1 Hz

* Sensitivity1

- Tracking: -160 dBm

- Reacquisition: -150 dBm

- Cold starts: -143 dBm

* Time-To-First-Fix2

- Cold starts: 40s (typ.)

- Hot starts: 3s (typ.)

* Accuracy

- Horizontal position3:
