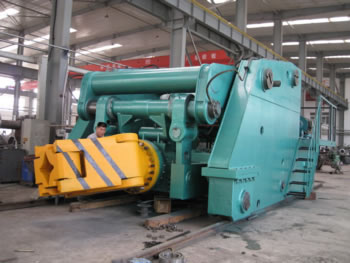

Rail bound forging manipulator - Rail bound forging manipulator Specificaton & Trade Terms
| Model | Rail bound forging manipulator |
|---|
| Place Of Origin | China |
|---|
| Price Term | EX-Work |
|---|
| Payment Term | T/T |
|---|
MANIPULATOR SPECIFICATIONS
CARRYING CAPACITY, NOMINAL: 80 TONS
TONGS CLAMPING MOMENT: 2,000 KNM
TONGS OPENINGS, WITHOUT INSERTS, ROUND: 800/2,000 MM ROUND
WITH INSERTS: 200 - 800 MM ROUND
WITH EXTENSION ARMS: 100 - 2,800 MM ROUND
MAX. TURNING DIAMETER WITH EXTENSION ARMS: 3,900 MM
VERTICAL TILTING ANGLE OF TONG: UP 15 ANGLE (DOWN TO FLOOR)
HORIZONTAL MOVEMENTS OF TONG IN FORGING
DIRECTION, RELATIVE TO CARRIAGE: 400 MM
SPEED, TIMES
FORGING: 0-30 M/MIN
TRAVELING: 0-50 M/MIN
TURNING OF TONG: 0-8 RPM
LIFTING AND LOWERING OF TONG: 90 MM/SEC
TILTING OF TONG: 90 MM/SEC
SIDE SHIFTING OF TONG: 80 MM/SEC
ACCURACY
TRAVELING: 3.0 MM
TURNING: +/- 1 ANGLE
TOTAL DELIVERY OF THE MAIN PUMPS: APPROX 1,450 L/MIN
TOTAL CAPACITY OF ACCUMULATOR: 600 LITERS
USABLE CAPACITY OF ACCUMULATOR: 200 LITERS
TRAVEL DISTANCE: 25.0 METERS
