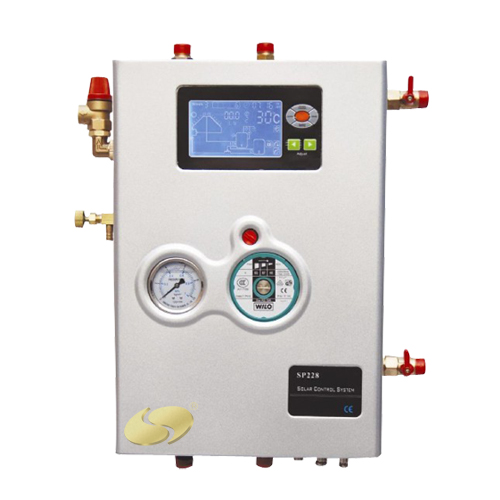

Pumpstation - SL-SP228 Specificaton & Trade Terms
Model | SL-SP228 |
---|
Place Of Origin | China |
---|
Packaging | Cartons/Wooden Cases |
---|
Brand | Sangle |
---|
Gurantee | 1YEAR |
---|
Certifications | CCC,ISO9001:2000; |
---|
Price Term | EX-Work,FOB,CIF |
---|
Payment Term | T/T,L/C |
---|
Supply Ability | 5000Sets/month |
---|
Minimum Order | 1Sets |
---|
Loading Ports | Shanghai |
---|
Delivery Time | 10~15days |
---|
pumpstation,pump station,working station,work station
Model: SL-SP228
Main technical data:
1. Dimension: 450×310×150mm
2. Input voltage: 200V240V AC or 100V120V AC
3. Power: ≤3W
4. Accuracy of temperature measuring: ±1oC
5. Range of temperature measuring: PT1000 : 0~199oC NTC10K: 0~99oC
6. Input signals:
2 x PT1000 sensor temperature probe ≤500oC, silicon cable ≤280oC;
4 x NTC10K sensor temperature probe≤135oC, PVC cable ≤105oC
7. Output signals:
1 x Auxiliary heating output (Max. load current: 12A)
4 x Relay output (Max. load current: 3A)
8. System design pressure: 1 MPa
9. Safety valve respond pressure: 0.6 MPa
10. WILO pump model: RS15/6
11. Screw coupling: 1/2
12. Pipeline material: Brass
13. LCD-display
14. Range of environment temperature: -10~50oC
15. Water protection grade: IP40
Main functions:
1. 8 solar hot water systems for choice
2. Time display
3. Temperature difference circulation
4. Storage tank overheating protection
5. Emergent stop of system overheating
6. Frost protection of pipeline and collector
7. Three periods of time adjustable on pipeline circulation
8. Three periods of time adjustable on auxiliary heating
9. Holiday function
10. Anti-bacteria function
11. Three speed levels on circulation pump
12. Display flow rate
13. Display system pressure
