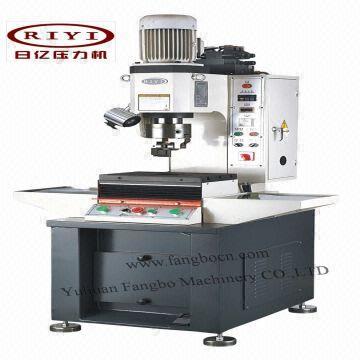

Precision hydraulic Riveting Machine - FBY-X05

Precision hydraulic Riveting Machine - FBY-X05
:
Yuhuan Fangbo Machinery CO.,LTD
: 2011-12-03 00:02:16
:
Medium and Small Hydropress, Single Column Hydraul

Inquiry Supplier / Manufacturer
Description Of Precision hydraulic Riveting Machine - FBY-X05

Precision hydraulic Riveting Machine - FBY-X05 Specificaton & Trade Terms

ModelFBY-X05
Place Of OriginChina
Price TermEX-Work
Payment TermT/T
Product feature:
1. The C-body design, whole body cast and high rigid.
2. Professional design, suitable for various parts of the flange riveting, such as ball, silicone oil clutch. etc.
3. Frequency power head,adjusting speed arbitrary, wide speed range
4. Safety design, using both hands to operate, with emergency stop button and jog up and down function.
5. Key and Foot Switch two cycle start modes.
6. Can be equipped with a torque detection device to facilitate the detection of spin riveting quality (Ball special purpose machine).
7. Infrared protection can be configured (Optional).

Technical Parameters
Theoretical output pressure 50KN(5t)
Rated oil pressure 10Mpa
Max stroke 120mm
Max Opening Height 350mm
Throat Depth 240mm
Fast-forward speed 115mm/s
Feeding speed 0~80mm/s
Return speed 100mm/s
The size of the working table 410 X 280mm
Sprin riveting motor power 2.2Kw
Power of motor 2.2kw
Power(3ΦAC,50Hz)380V
Weight 700kg

what's more, the hydraulic machine can be designed for all kinds of customers' special request.
