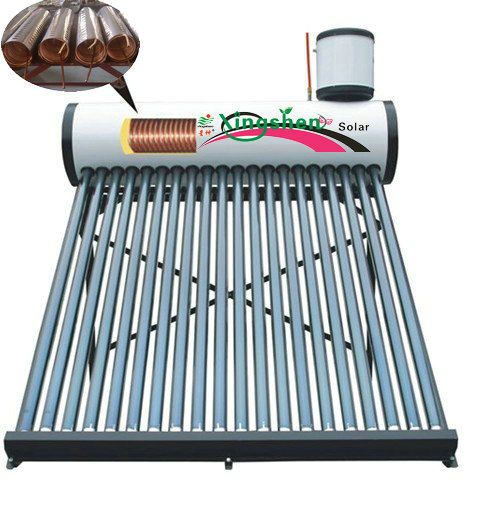

Pre-heater Solar Water Heater - XSPH-150L-15

Pre-heater Solar Water Heater

Pressure–bearing solar energy water heater specially used for villa

The first and only drinkable water heater in the world


Material

Inner tank: stainless steel SUS304/2B, 0.41mm

Outer tank: galvanized/ color steel, 0.31mm

Frame: galvanized steel/stainless steel SUS304/aluminum alloy, 1.5mm

Insulation: polyurethane frothing, 50mm

Vacuum tube: AL/N coating, 58*1800mm

Accessories: electrical heating, water auto-feeding tank, MG Rod and solar control

Logo: OEM, co lour printing /sticker

Capacity: 180/200/240/250/300/360L



1, Main tank is non-pressure, Inter copper coil can bear 6~8bar work pressure.
2. The material of inner tank is SUS304 2B food grade stainless steel with 0.4mm thickness.
3. The material of outer tank is SUS304 stainless steel with 0.4mm thickness.
4. The material of stand frame is stainless steel with 1.2mm thickness. The angle of the frame can be changed in the production as the local latitude of customers, we can design the suitable angle for the customers. We also could provide the adjustable frame.
5. The thickness of polyurethane foam is 55-60mm.

6. Copper coil diameter 14mm, thickness 1.0 mm, length 25~35mm
7. Hen water flows through the coil, it absorbs heat from the water inside the solar collector tank, so the solar collector tank is a thermal store.
8. Easy plug-in installation.
9. It is very popular in torrid zone and warm area, such as Asia, Africa and etc.
10. We offer the accessories of this system, such as electric heater, assistant tank, controller, magnesium and etc.




Features

uTri-elements coating by alum-nitride/SS/CU of vacuum tube, higher heat absorption efficiency.,

uCopper coiler inside of tank could bear high hydraulic pressure, more comfortable shower.

uEnjoy the fresh hot water exchanging heat energy from tank, more clean and healthy.

uEasy operation and fashionable design, economical and environment protective performance.



Working Principle

Cold water flows into water tank and becomes high temperature via heat absorbing from vacuum tube. When consumer wants to use, cold water crossed from coiler who could exchange heat energy with hot water inside of tank, consumer will enjoy fresh and high hydraulic hot water out from the coiler. Also could drink the water from the copper pipe.




Packing:

1) Standard export packing for full container quantity

2) Special packing for sample orders
