PVC Helix Reinforced Suction Hose - CGWH-026

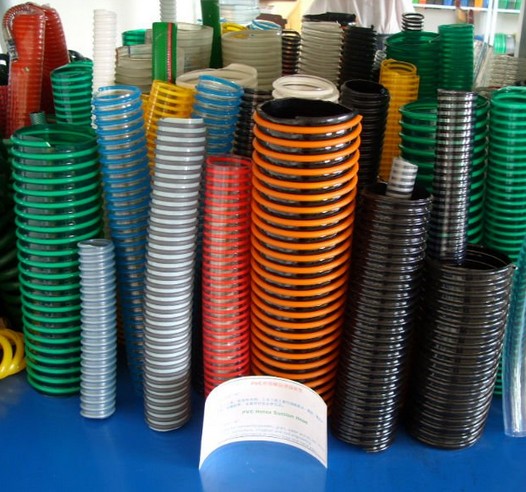

PVC Helix Reinforced Suction Hose

1. Made of: High quality new PVC materials
2. Specification: 1/2" to 16" 12mm-400mm
3. Length: 20m/roll,30m/roll,50m/roll
4. Color:green,yellow,red,black,clear etc
5. Diameter and thickness as per the customers'requirement
6. Good flexibility, no poison and no smell.
7. Reinforced rigid plastic screw inserted into the inner wall of flexible PVC hose.
8. To be light in weight with good resistance to the hard weather conditions and minus pressure, and small bending radius.
9. Excellent resistance to pressure, external impacts, chemical, gases, light acids and saline water.
10. Working Temperature: -5°C-65°C.
11. Ideal subsititute for rubber hose, cement hose and metal hose in many areas.
12. Widely used for pumping and delivery fluids such as water ,oil and powder in agriculture, factory and construction , can fit to PVC pipe by PVC glue.
13. Especally ideal for ventilation and air conditioning system,industrial vacuum cleaner,and granulate conveying systems.
As suction and transport hose suitable for below substance.
Gaseous medias such as vapors and smoke.
Liquid medias.
Small granultes such as dusts,powders and ect.

Specifications of PVC Suction Hose


Size
(in) I.D.
(mm) W.T.
(mm) W.P.
(bar) B.P.
(bar) Length
(m)
3/4 19 2.0 8 32 50
1 25 3.5 8 32 50
1-1/4 32 4.0 8 30 50
1-1/2 38 4.0 8 26 50
2 51 4.3 7 24 30
2-1/2 64 4.5 6 20 30
3 76 5.0 5 20 30
4 102 6.0 5 16 30
5 127 6.0 4 13 30
6 152 8.0 4 12 20
8 203 8.0 3 9 10
