Description Of PC Groove 3 leds 5050 SMD module - SQL-PCG50-3F1

PC Groove 3 leds 5050 SMD module - SQL-PCG50-3F1 Specificaton & Trade Terms

ModelSQL-PCG50-3F1
Place Of OriginChina
Price TermEX-Work
Payment TermT/T

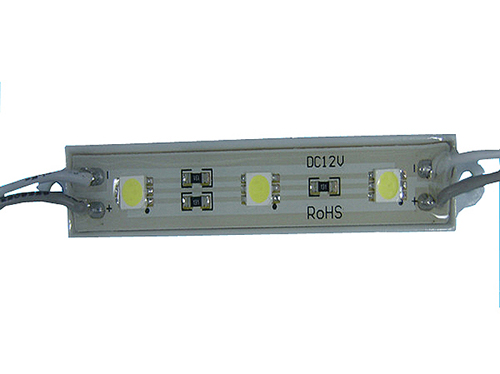

PC Groove 3 leds 5050 SMD module
Input Voltage:DC12V
Warranty:2 years
Factory direct
Power:0.72W
View angle:120°
Features:
Superbright SMD top LED & viewing angle, high brightness output, no spot and shadow.
Colors can be chosen as R/G/B/Y/W, the lumen is 16.3/13.4/36.3/9.4/51lm.
Low power consumption & operating voltage, safe and energy-saving.
With IP65 protection rating.
Solid-state, high shock or vibration resistant, long lifetime, more than 50000 hours.
Easy installation with mounting holes and 3M adhesive tape on the back.
Application:
Widely used in household lighting.
Backlighting for advertisement, signboard and billboard.
Backlighting for light box.
Signal lamp for channel.
Direction:
The module is 20pcs/string, 1.2A current per string. User can put several strings in parallel connection, each string running a loop. Lest the nonuniform color caused by the voltage drop, the cable section of main power supply should not less than 2.5mm2.
The module number of each string is customizable or a single use.
Keep it in a well-ventilated environment, good for heat dissipation.
When connecting, yellow wire to connect power “+”, white wire to connect power “-”. Don't reverse.
Banned charged work.
Suggested to use brand switching power supply with safety certificate.(with short circuit, over voltage, current protection function)
