PCB separator machine - CWVC-1 Specificaton & Trade Terms
Model | CWVC-1 |
---|
Place Of Origin | China |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|

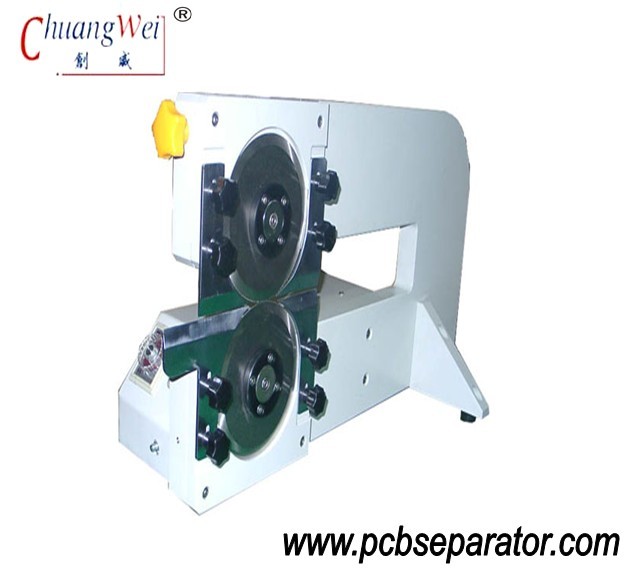

PCB separator machine
1.Easy operating modes
2.Easy setting, edge guiding
3.Cutters re-grinded
4.Avoid micro-cracks
Specification:
Model CWVC-1
PCB Cutting Length (mm) 330
Cutting Speed (mm/s) 0~400
Cutting Thickness (mm) 1.0~3.5
Power Supply (V) 110/220
Size (mm) 420*280*400
Weight (Kg) 20/40
Blade Hardness (HB) 540~567
Blade Hardness (HRC) 60~63
Blade working life for metal (Year) 0.5
Blade working life for PCB (Year) 1
Guarantee (Year) 1
Delivery (Day) 1
Min. Order (Set) 1
Ability (Set) 1000
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.
2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated
to high strength cutting, and excellent toughness, able to cut metal board !!!!!!
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
Feature:
1.Minimize the shearing stress to avoid micro-cracks of the solder joints.
2.Guiding device of the "V-CUT" of the PCB.
3.Ball bearing slideways for easy setting of the PCB edge guides.
4.Ball bearing slideways for easy setting of the height of the tabletop.
5.Easy operating modes: Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running.
6.Cutters can be re-grinded
7.The shape of the cutter can be customer made
Our Advantage :
1.CWVC-1 Pcb depanelizer original manufacturers, price concessions
2.Promise day technical support services
3.Limit the handling of complaints, half an hour back to customers
4.Depanel Experts, the provision of professional PCB sub-programme
5.Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.
